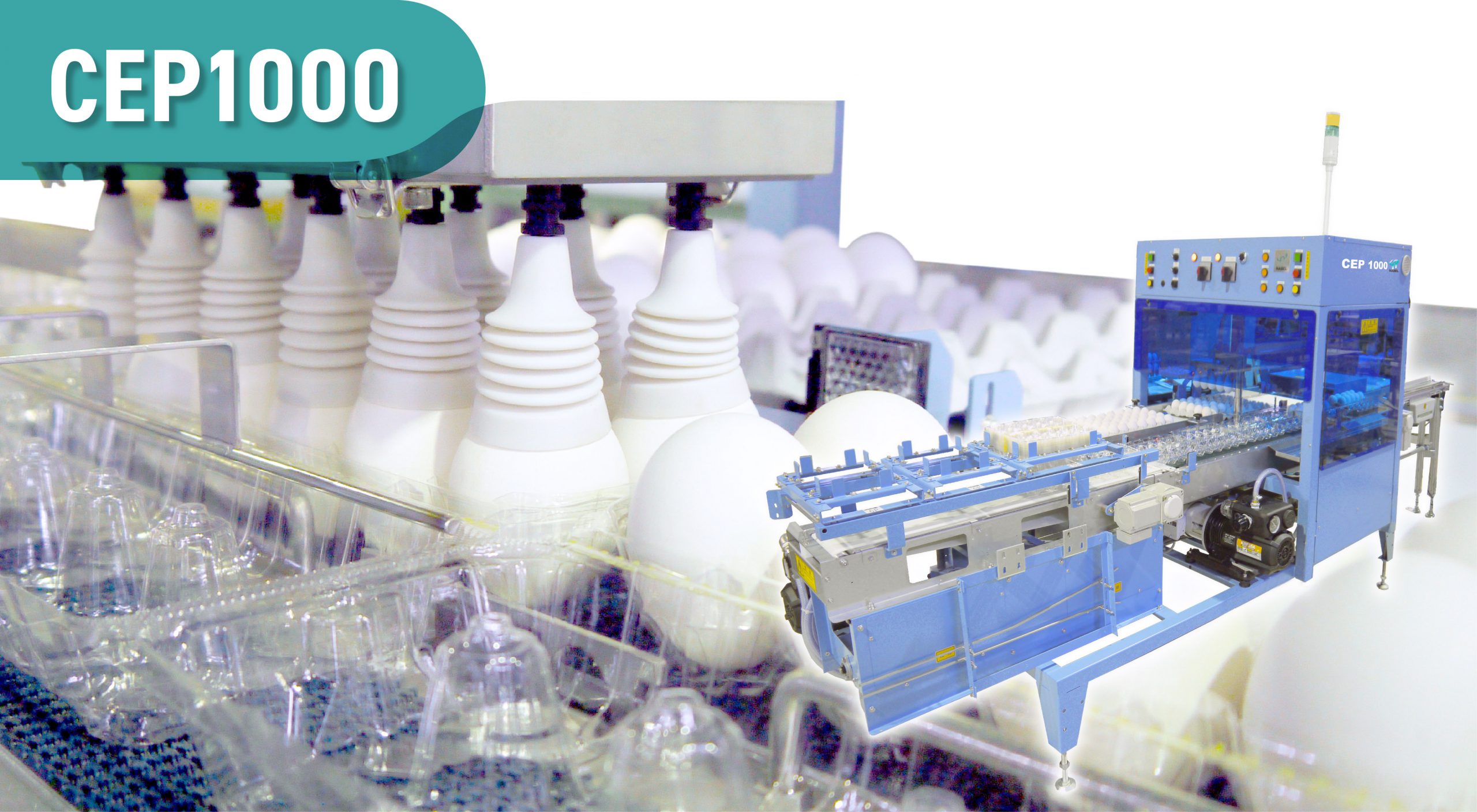

Cell Packer
Packing
For packing in low-volume production
A cell packer suitable for small-lot, high-mix production. Based on the concept of “cellular manufacturing,” we have designed a simple repacking mechanism and an easy changeover system. This cell packer also supports the repacking of eggs into one or two plastic packs.
Video
Features
Simple and compact design

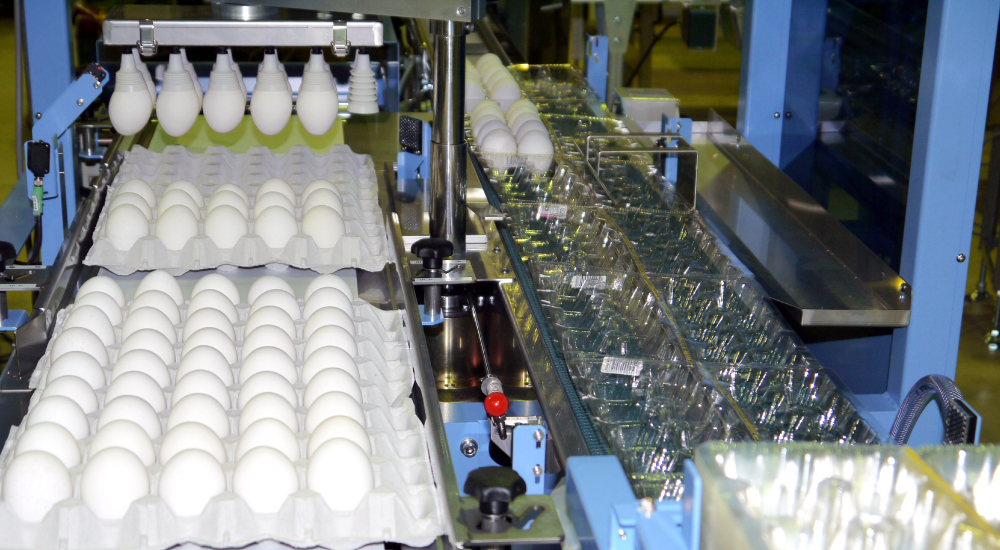

The cell packer uses a simple transfer mechanism using suction to bring eggs from the tray horizontally and pack them vertically. It has a footprint of less than half that of a repacker. This compact design makes it easy to use.

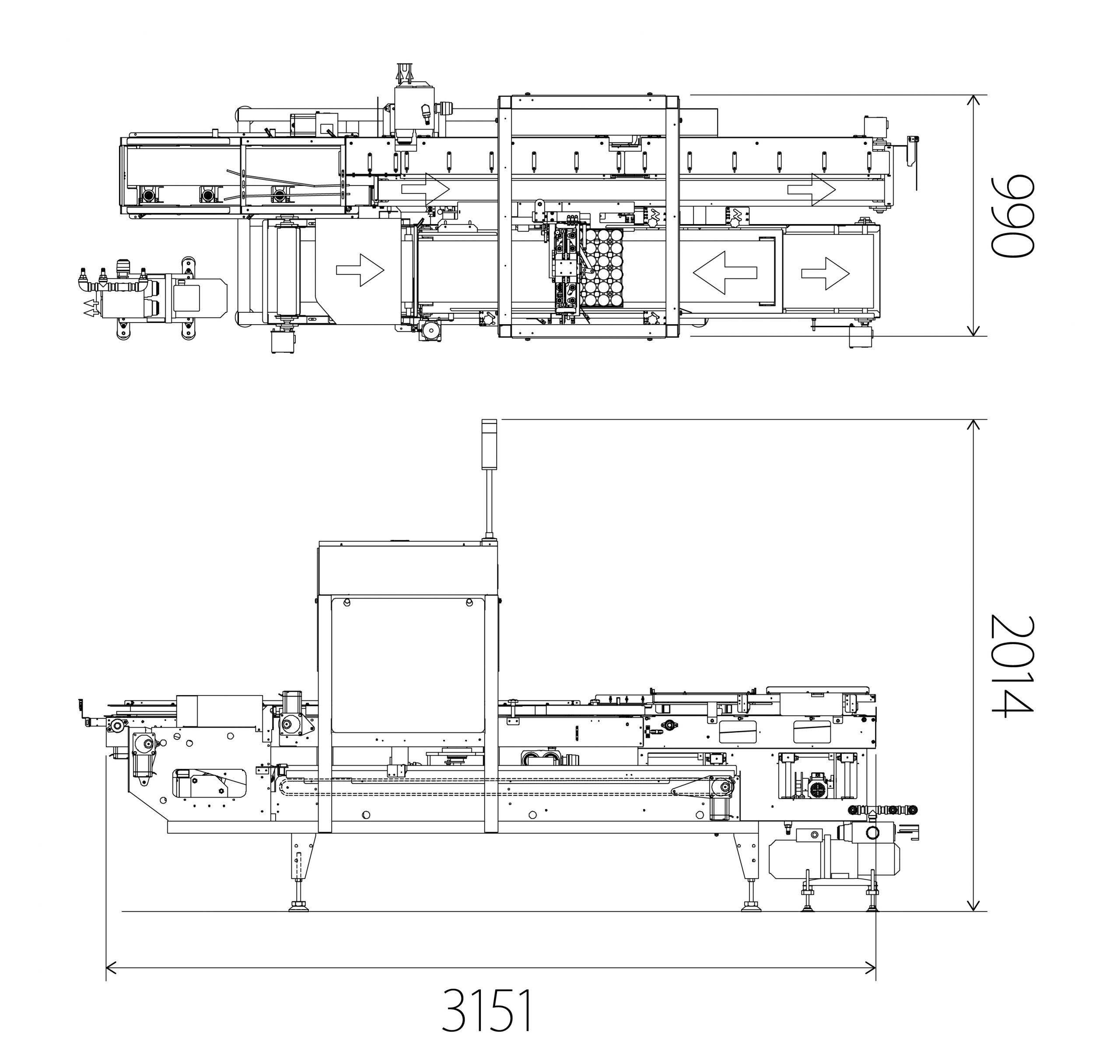

Layout
Specifications
| Code | CEP1000 |
|---|---|
| Capacity (Max.) | 9,000 eggs/hr. |
| Power | 3-phase 200V 30.0A 1-phase 100V 20.0A |
| Working environment |
Temperature : 0 – 40℃ Humidity : 45 – 80% *1 |
| Target eggs | 2L, L, M, MS, S |
| Available packs / trays | Plastic pack ( 12P, 10P, 8P, 6P, 4P, 2P, 1P ) Pulp mold carton ( 12P, 10P, 6+6P ) *2 Standard 30-eggs tray 30-eggs pulp mold tray NAEGS tray |
*1 No condensation
*2 Pulp mold carton support is optional.
Designs and specifications are subject to change without notice.
*2 Pulp mold carton support is optional.
Designs and specifications are subject to change without notice.
