Egg Tray Sealer
Packing
Automatic Tray Cover Sealing by Stapler
The sealer is capable of processing 1,200 trays per hour, and installable after the packing lane or as a stand-alone unit.
It is designed to use commonly used staples so as not to prepare the special ones.
Features

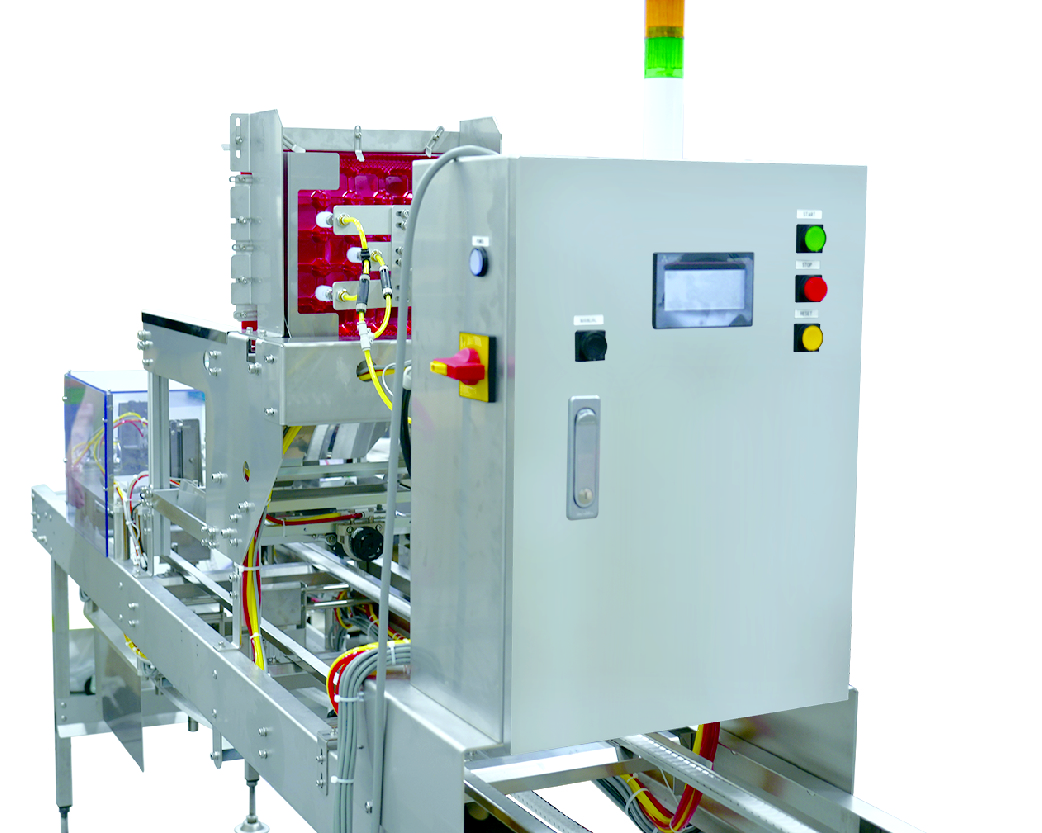

Control panel

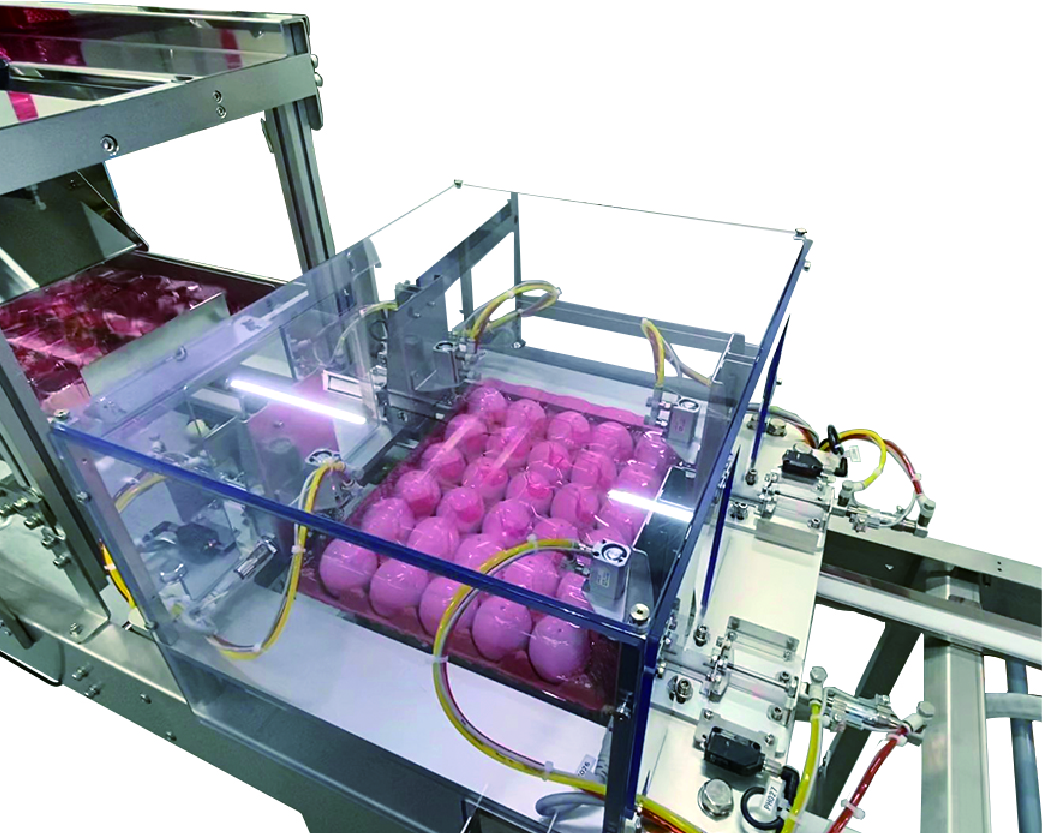

Stapler unit

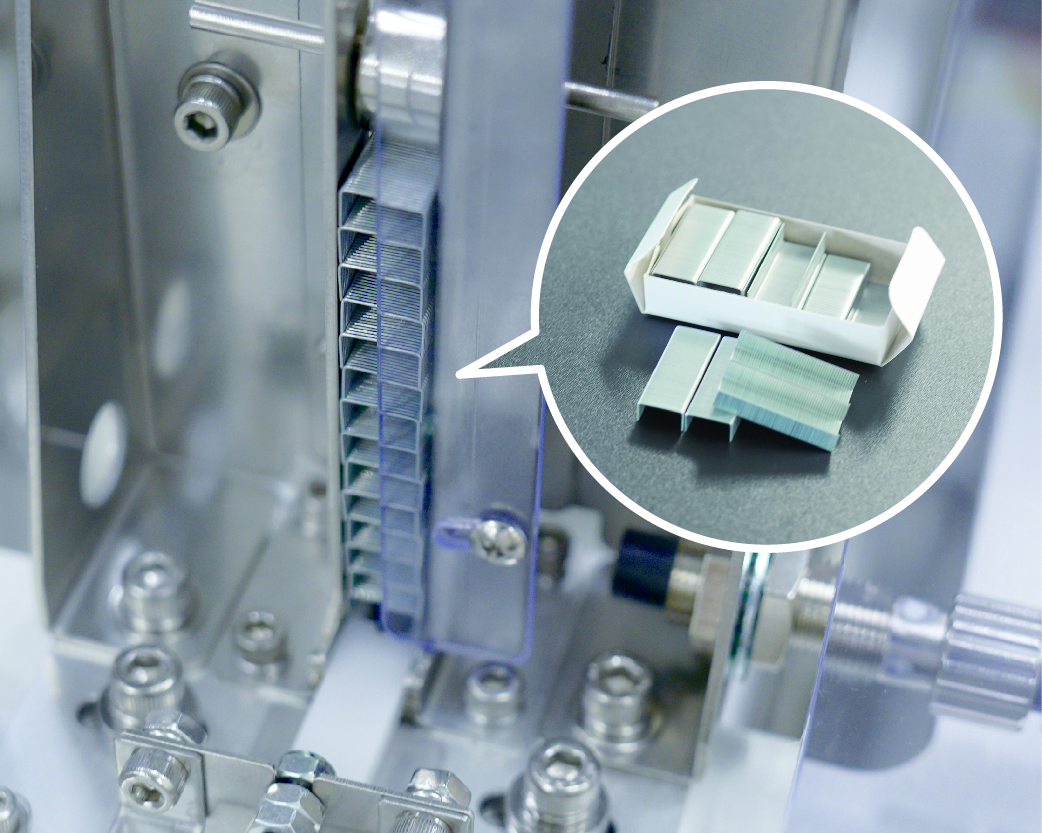

Stapler bullet supply
Options

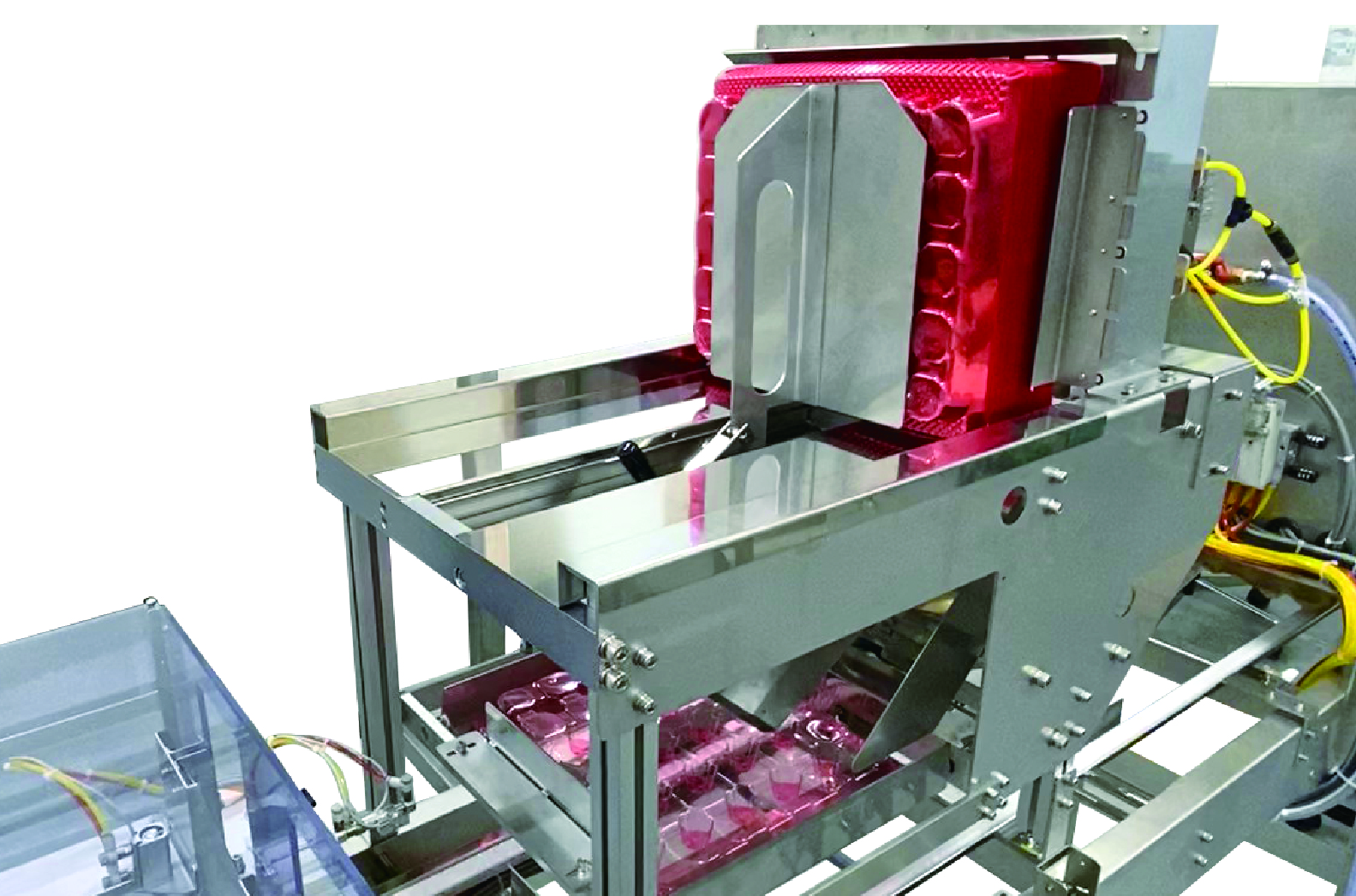

Cover Denester
Automated cover feeding further reduces labor.

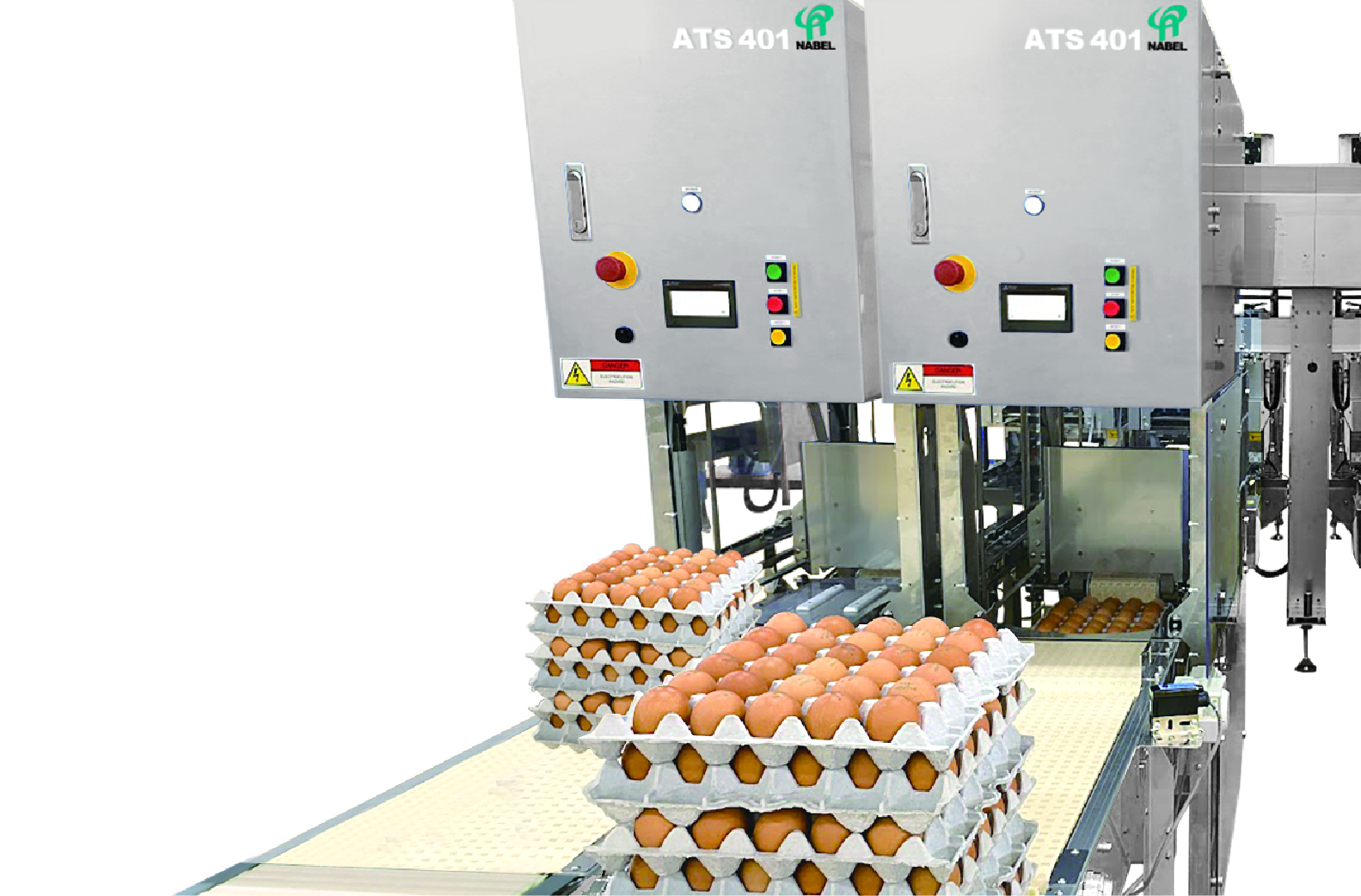

Tray Stacker
It is easy to change how many trays to be stacked up from 1 to 6, by touch panel operation.
Layout
Specifications
| Code | ETS001 |
|---|---|
| Capacity (Max.) | 1,200 trays/hr. |
| Power | 3-phase 200V 2.5A |
| Working environment |
Temperature : 0 – 40℃ Humidity : 45 – 80% *1 |
| Air consumption | 160L/min. (ANR) |
| Available trays | 30-eggs pulp mold tray *2 |
| Available staples *3 | Width : 8.4mm Length : 5mm |
*1 No condensation
*2 285 - 315mm
*3 Compatible with commercially available staples.
Designs and specifications are subject to change without notice.
