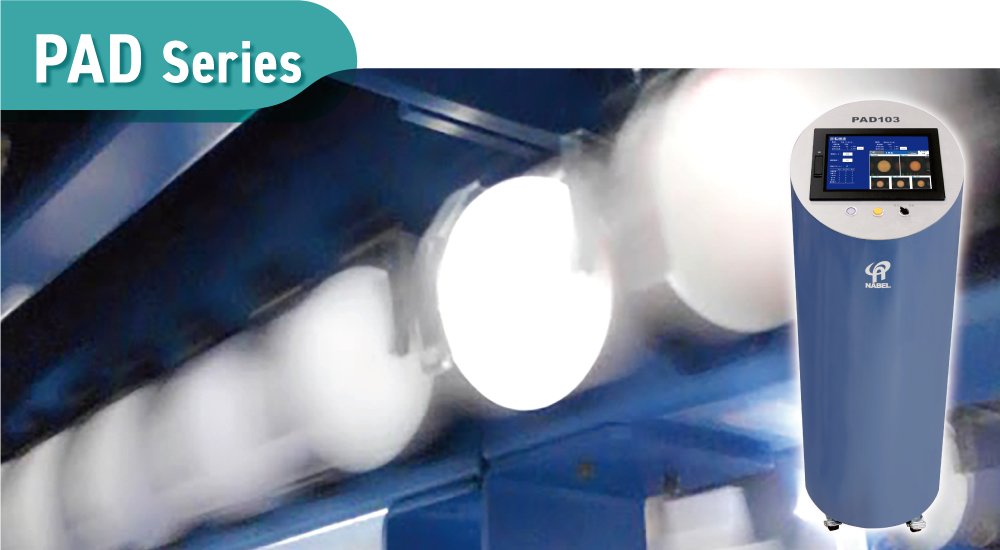

Pole Auto Dirt Detector

Products

Detector

Improving the quality of inspection for dirty eggs

This detector uses several cameras to photograph eggs from above and below, analyzing the images to detect contamination at the point and blunt ends of each egg. It can remove dirty eggs before they are sorted to reduce the burden of visual inspection by the operator after packing and the reworking process of opening the closed packs and replacing the eggs inside them.

Video Features Layout Specifications

Video

Features

Detection samples

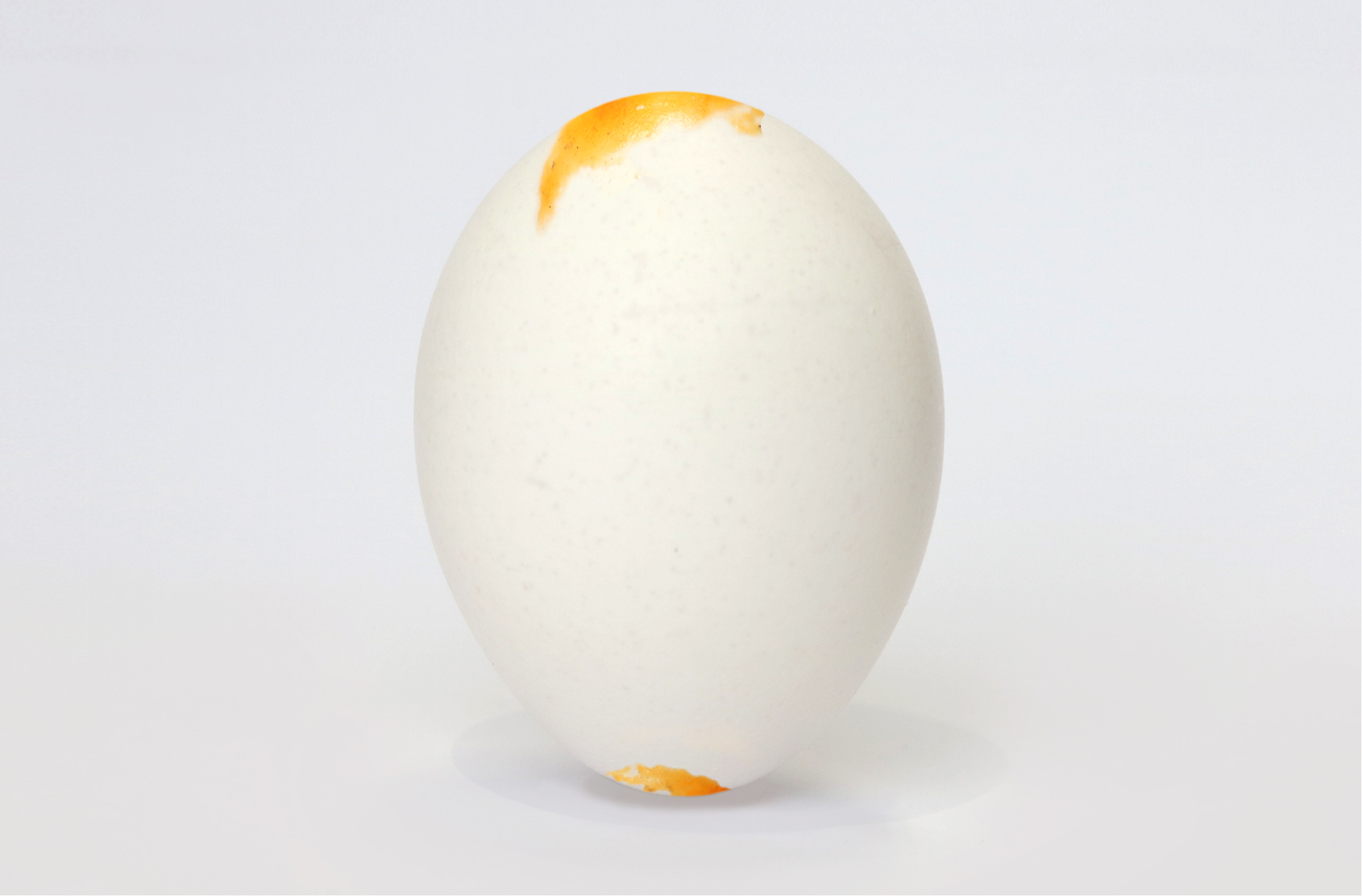

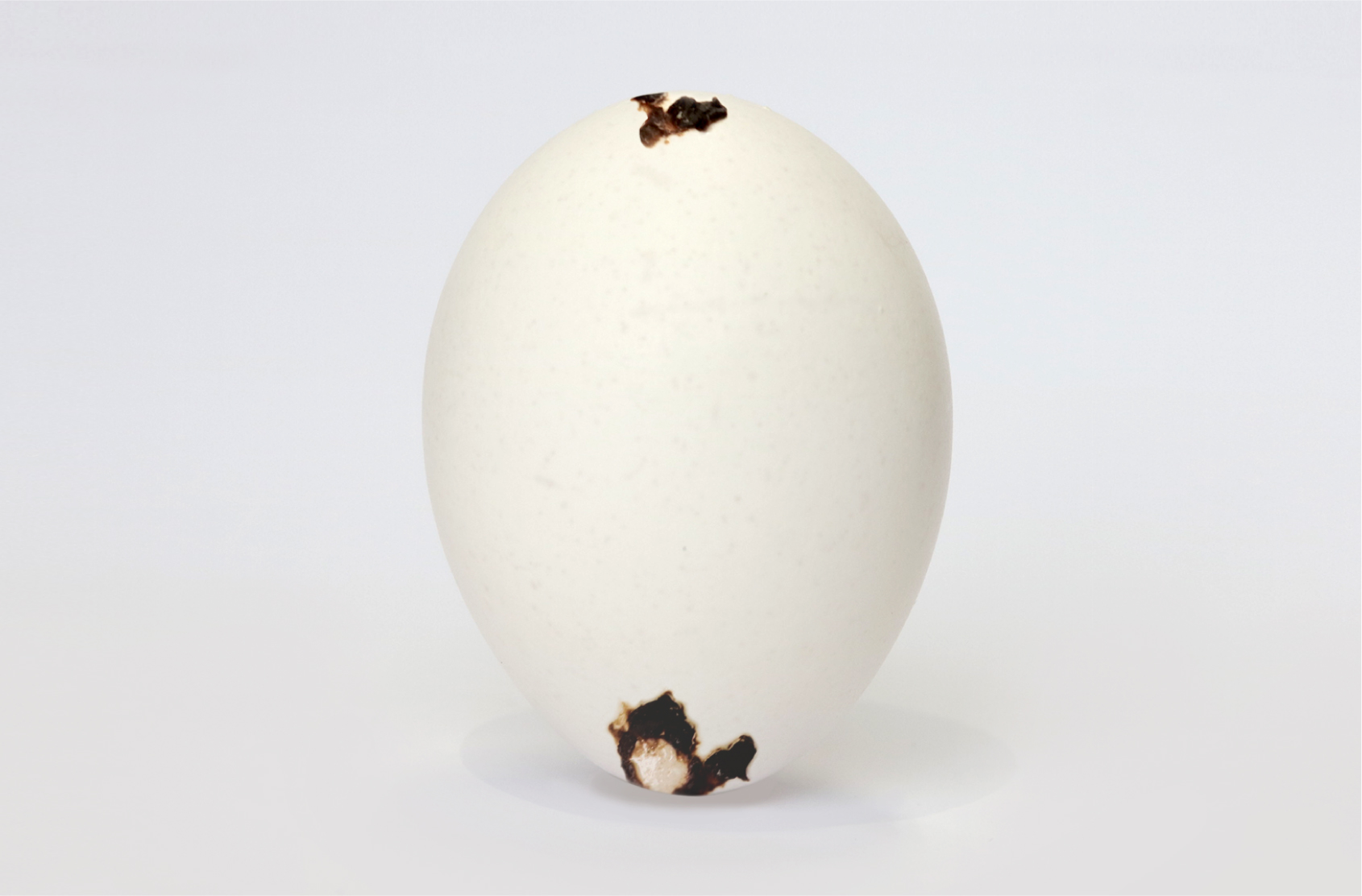

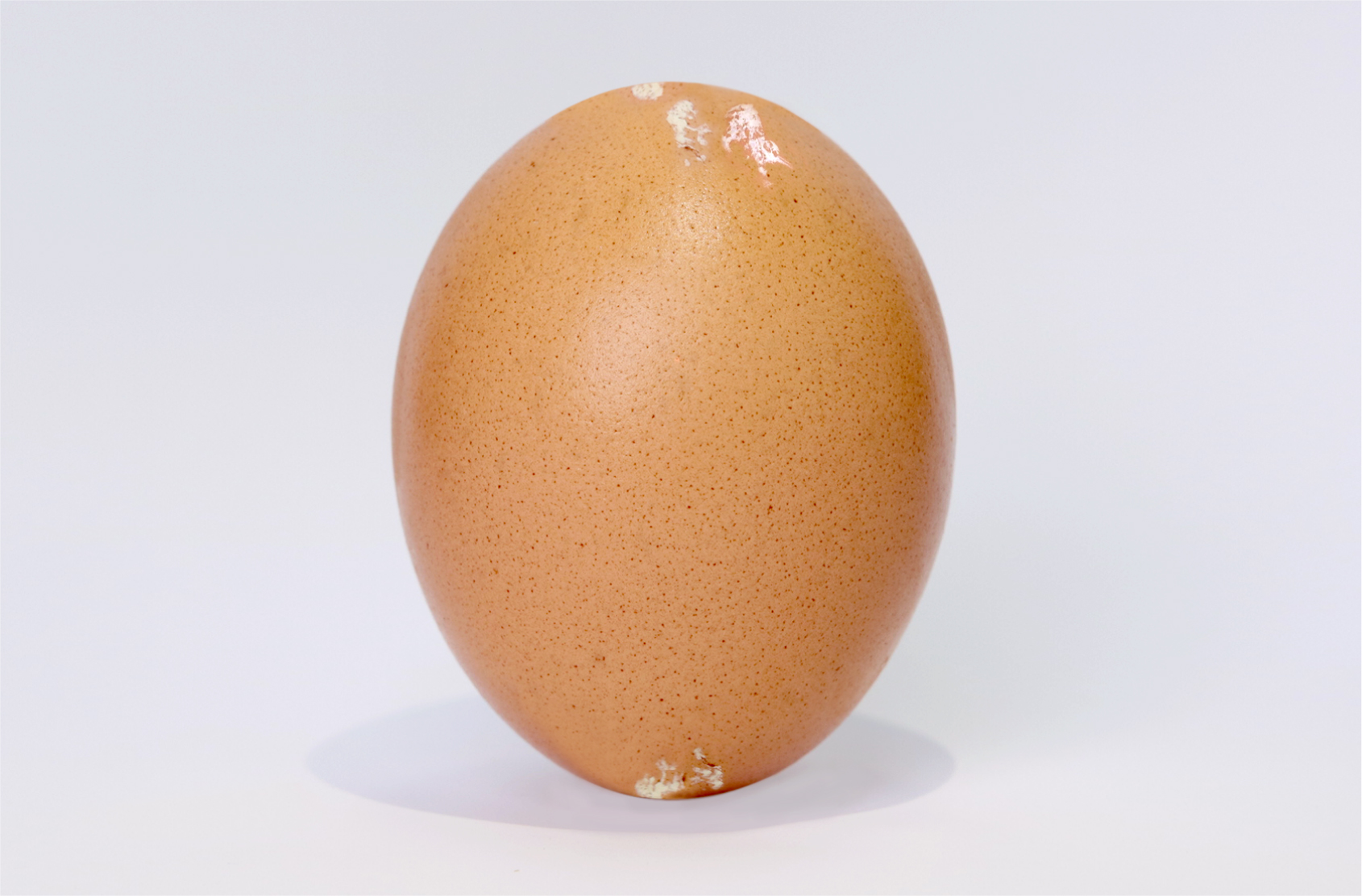

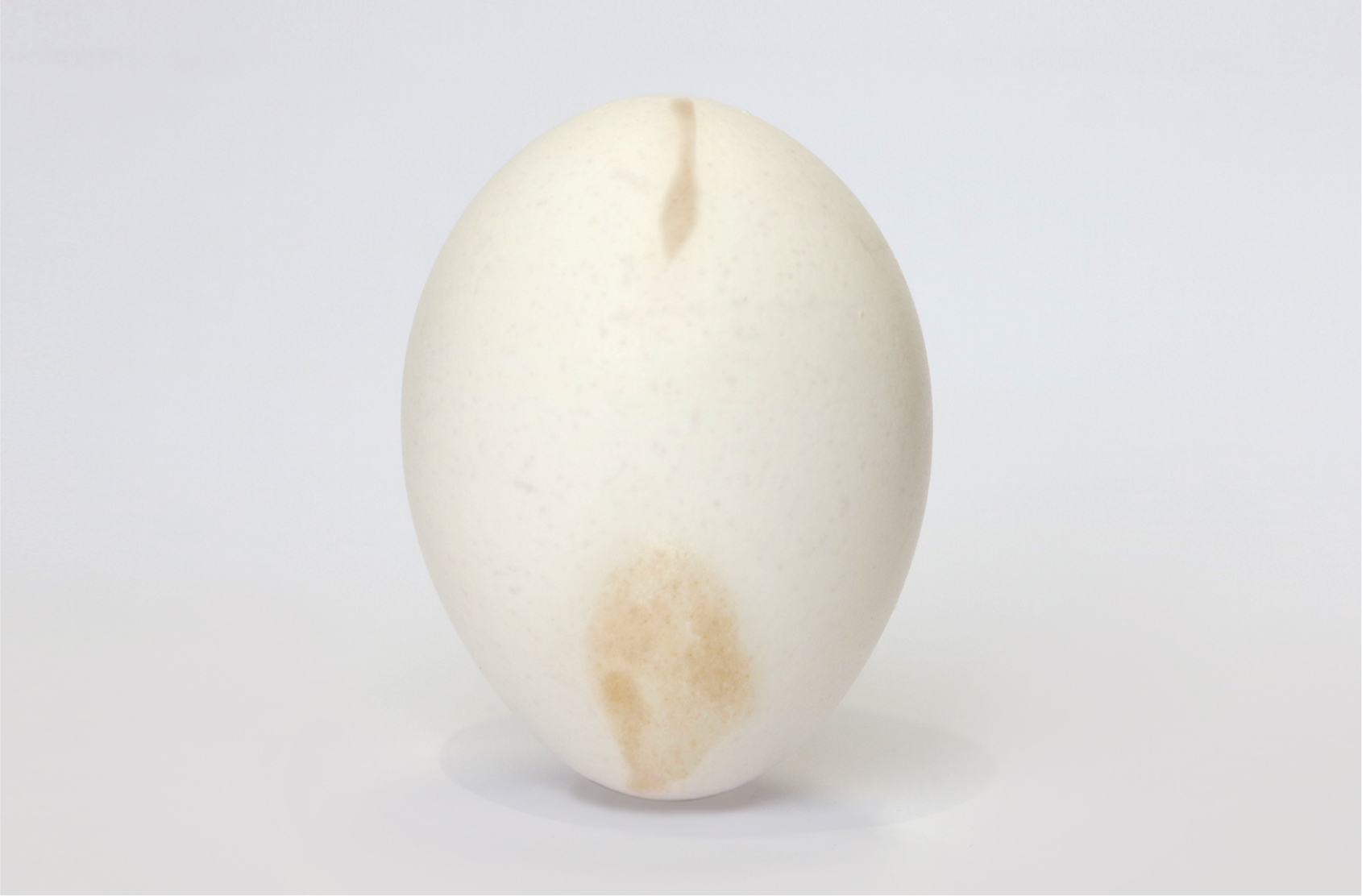

It detects contamination in the yolk, staining, black spots, and white spots at the point and blunt ends of the egg.

State-of-the-art imaging and analysis system

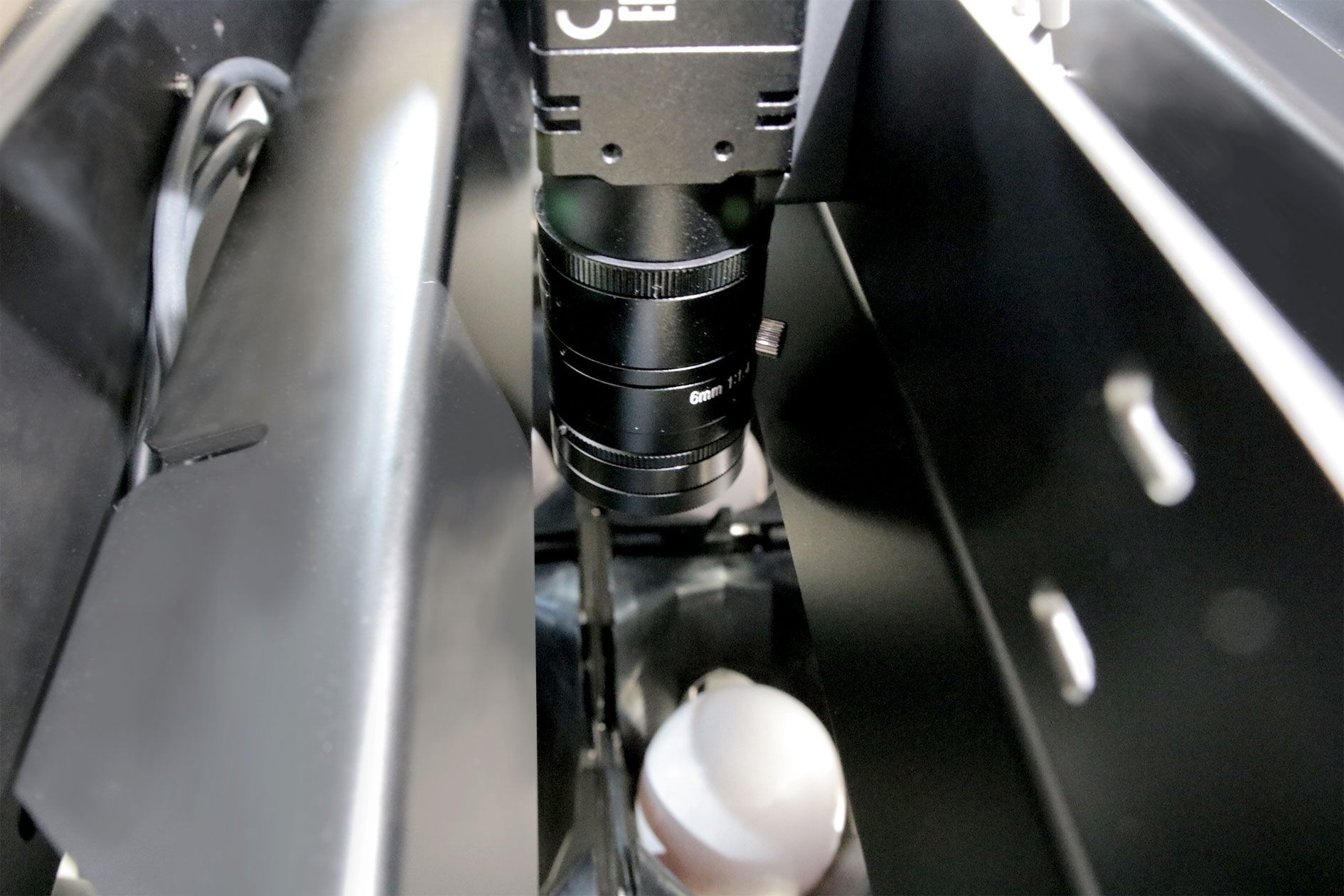

LED lighting illuminates the eggs from above and below. At the same time, multiple cameras are used to analyze the egg at the point and blunt ends. The detector instantly analyzes the images to detect contamination at the top and bottom of each egg.

Inspection status displayed in real time

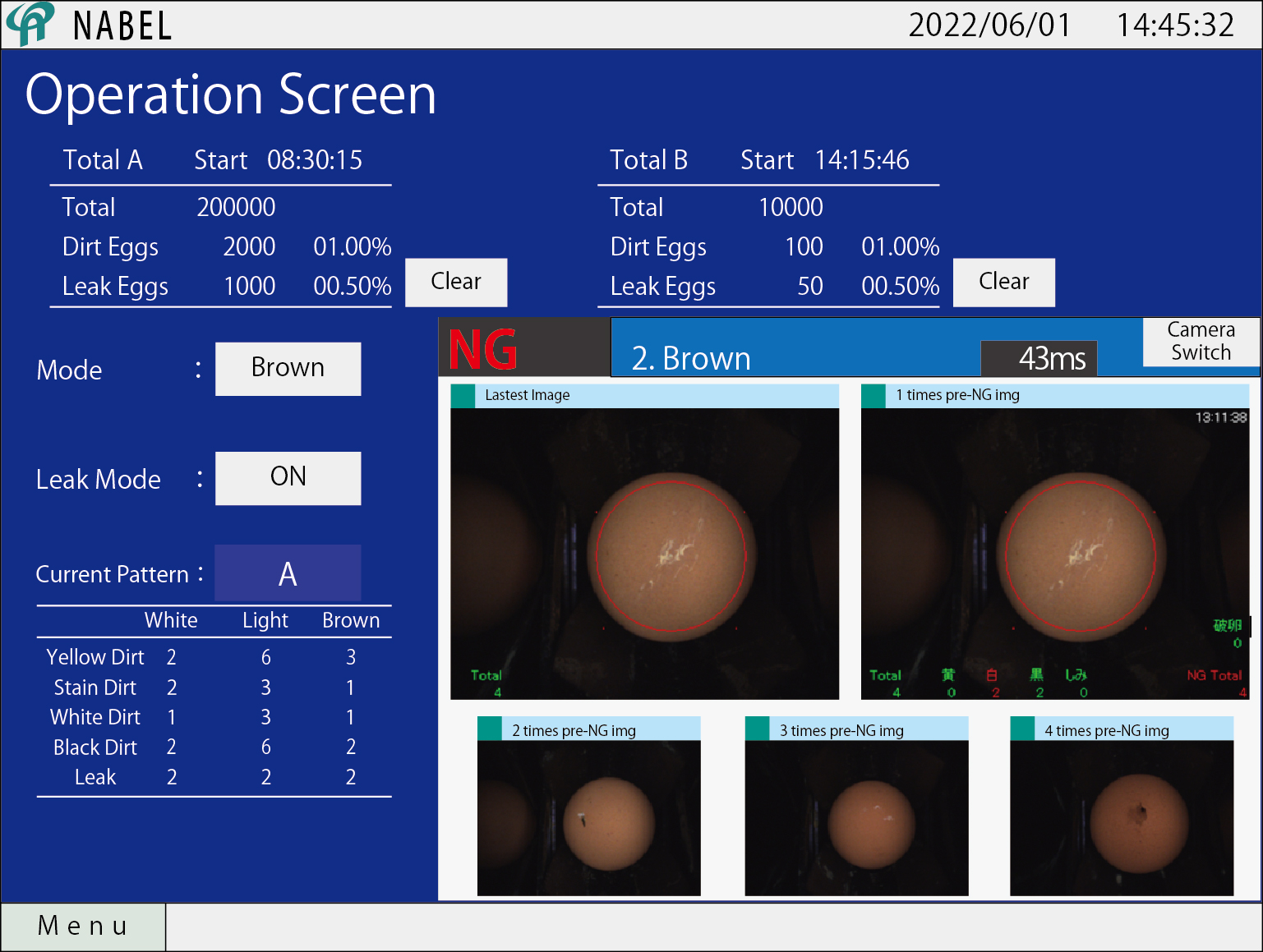

The monitor displays the number and rate of appearance of dirty eggs, the type of contamination, the determination mode and pattern, the latest image captured by the cameras, and the imaging history of detected unacceptable eggs.

Inspection settings tailored to the needs of the site

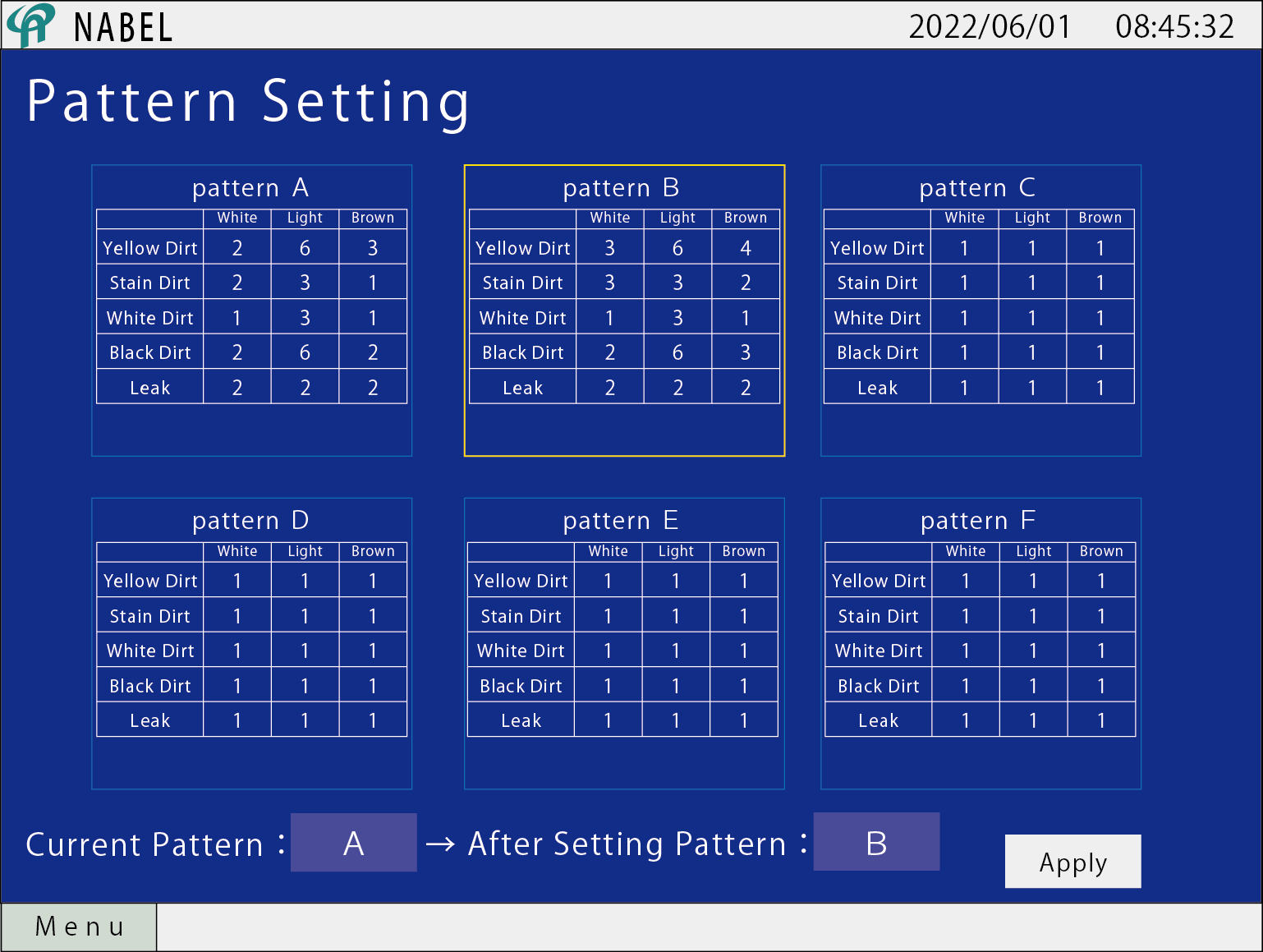

Determination levels for each egg shell color and type of contamination can be specified. The detector can save six patterns of determination level combinations and adjust the precision of inspection depending on the lot and product.

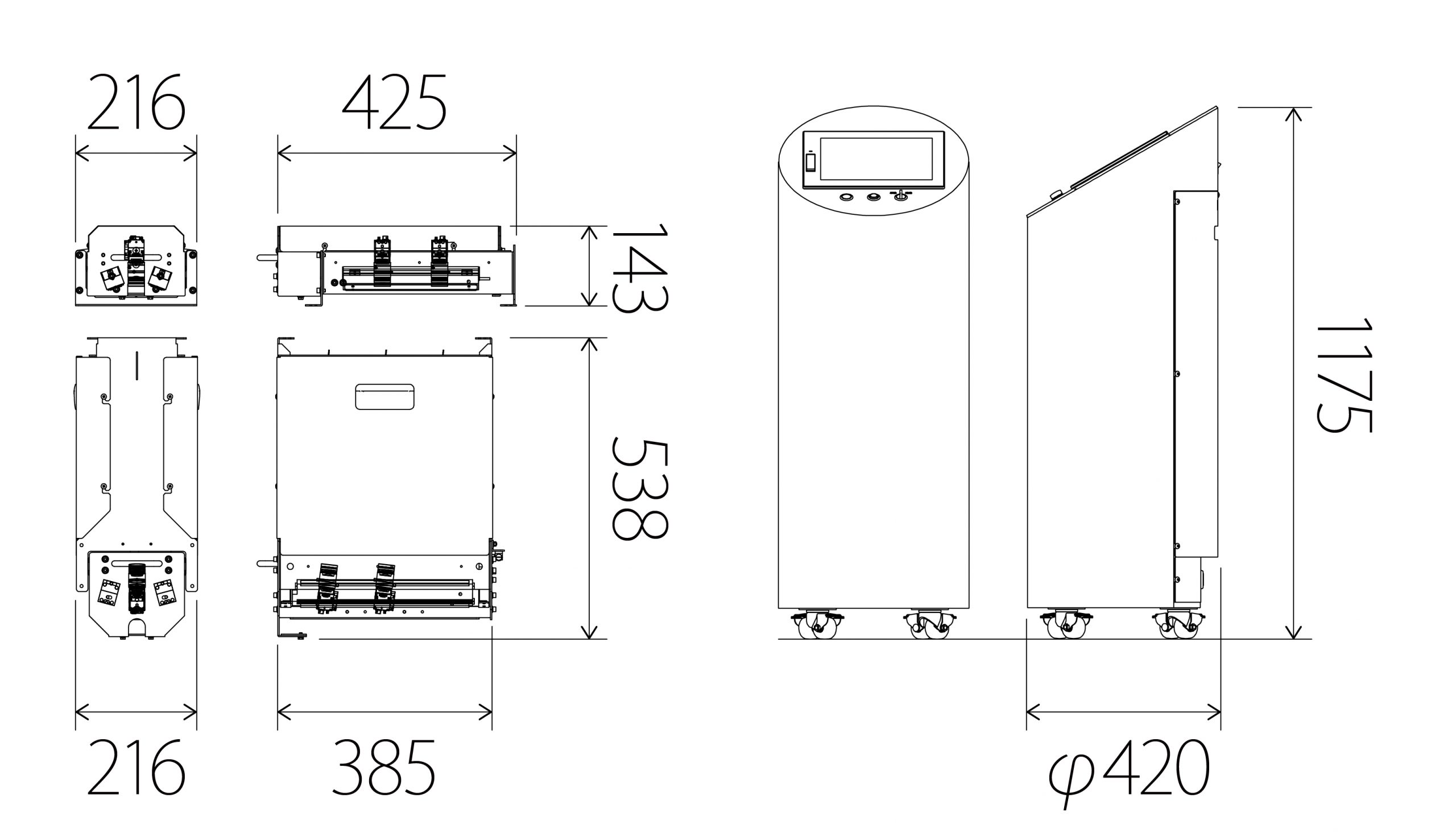

Layout

Specifications

Code	PAD103	PAD102	PAD020	PAD101
Track	3 tracks	2 tracks		1 track
Capacity (Max.)	120,000 eggs/hr.	80,000 eggs/hr.	66,000 eggs/hr.	40,000 eggs/hr.
Power	1-phase 200V 4.3A	1-phase 200V 4.0A	1-phase 200V 3.8A	1-phase 200V 3.6A
Working environment	Temperature : 10 – 40℃ Humidity : 45 – 75％ *¹

*1　No condensation
Designs and specifications are subject to change without notice.
