Fast and gentle repacking

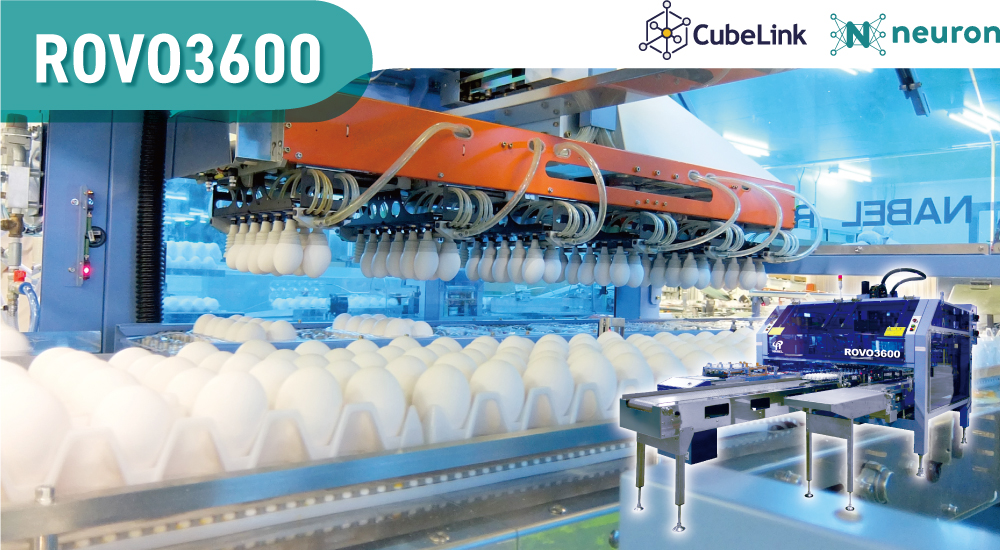

The Repacker is an egg packing machine to produce a single product in large volumes. It will significantly reduce the manpower required for labor-intensive packing process.
Video
Features

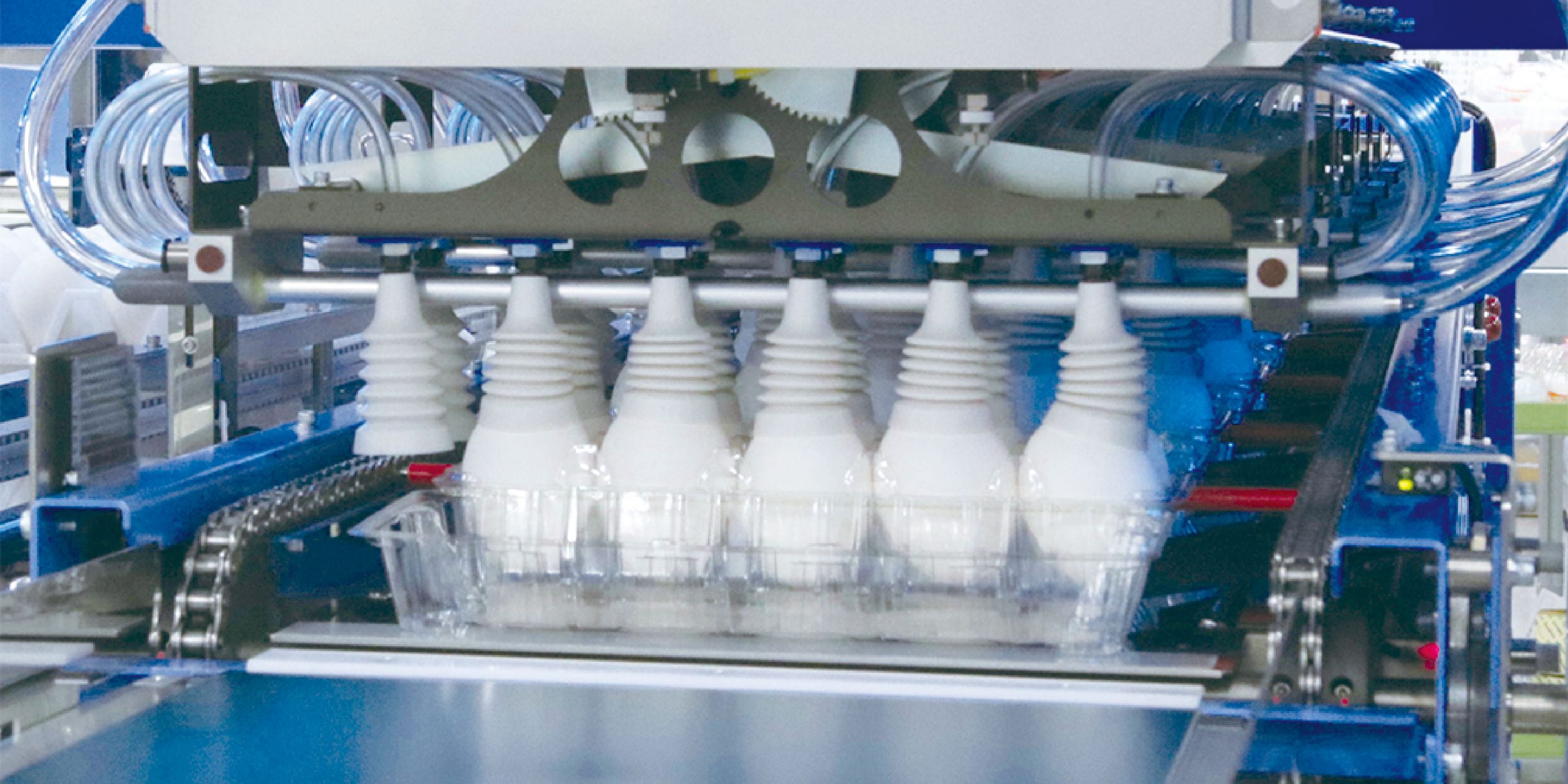

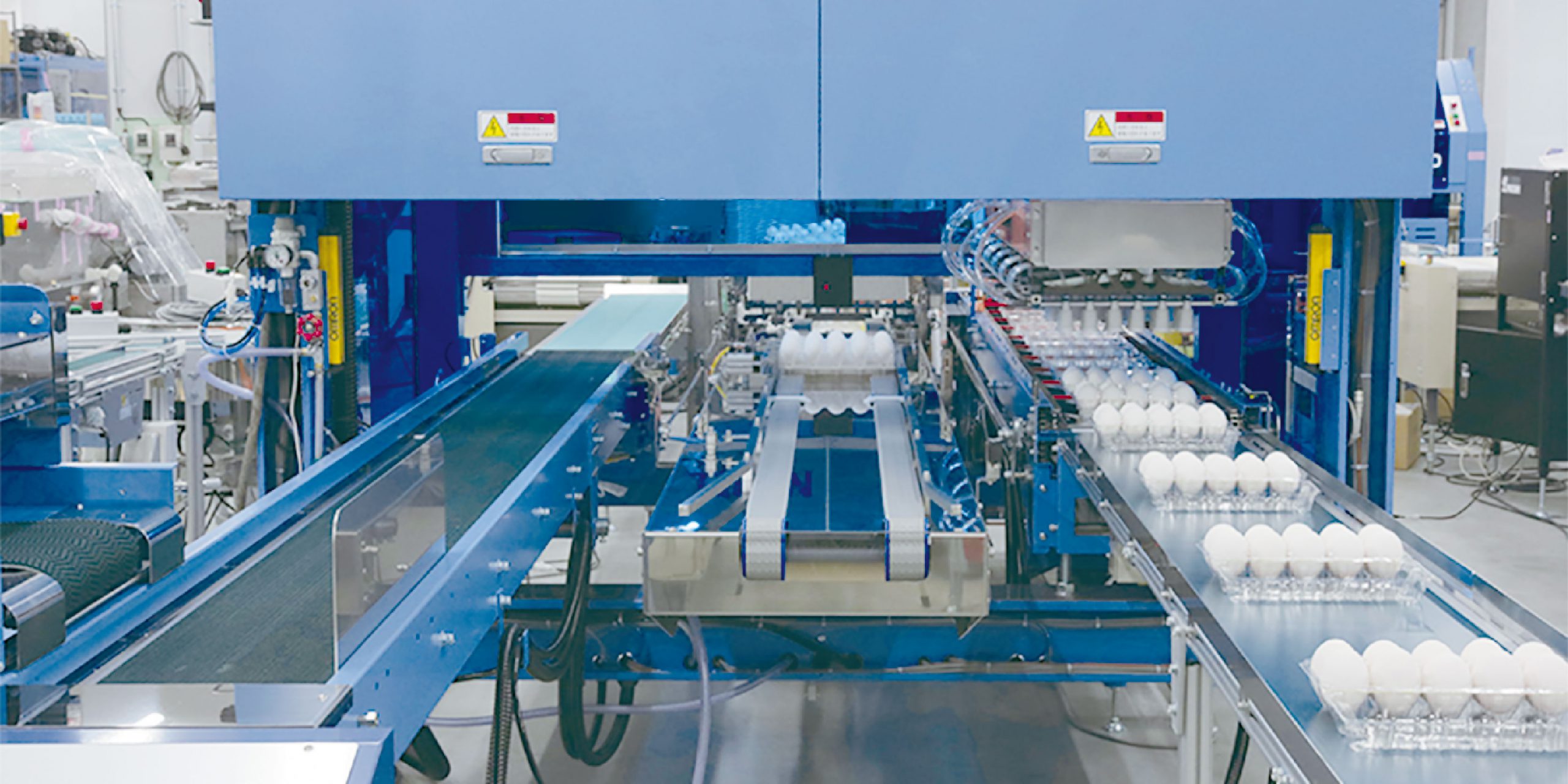

High-speed, egg friendly packing
It has a powerful processing capacity of packing up to 36,000 eggs per hour. The suction cups gently suck each egg and softly transfer it onto packages.
Special design for a single product
By producing a single product, different products are not mixed on the packing lane. It leads to reduce the burden of packing operations and of quality inspections.

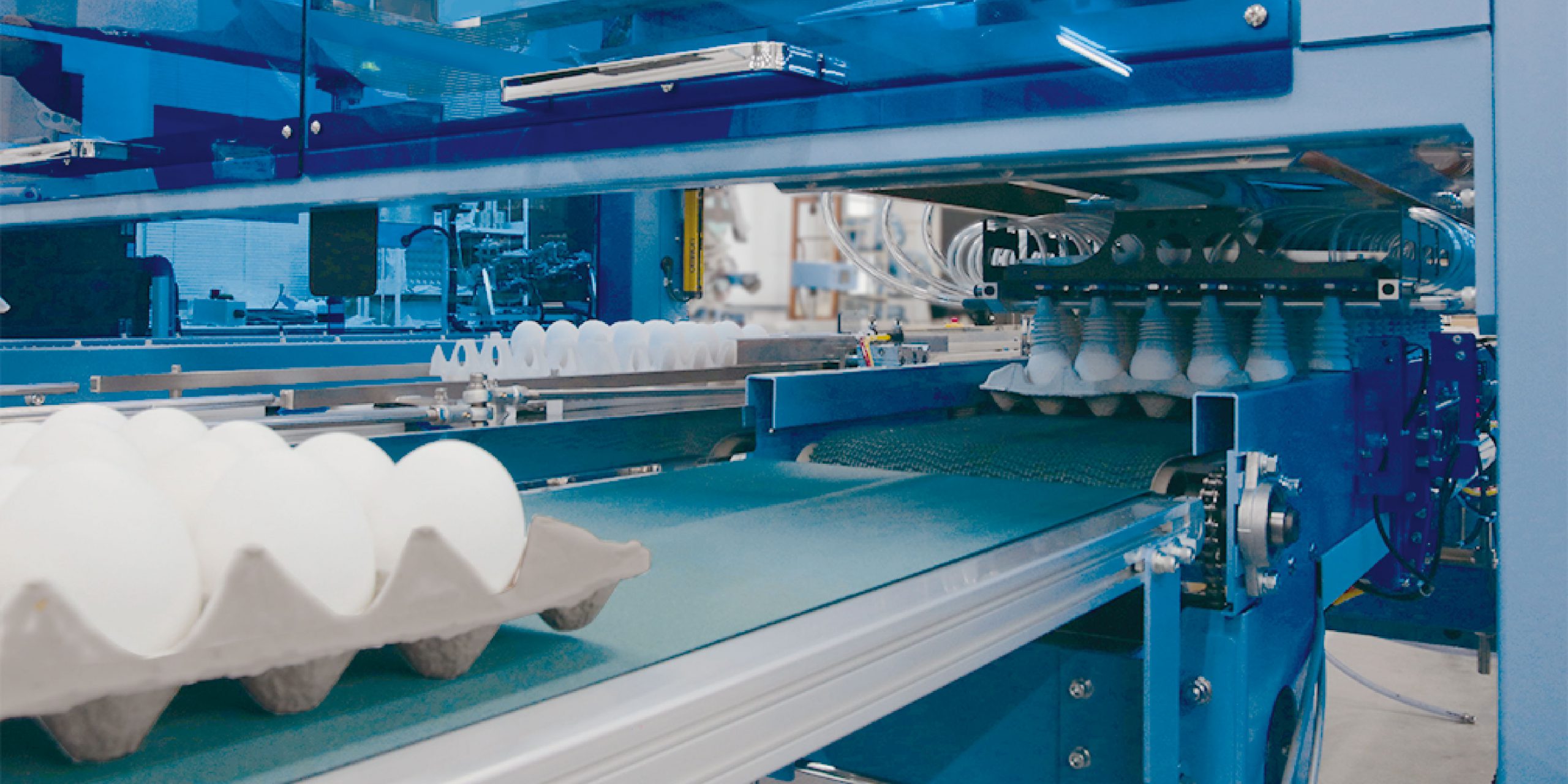

Transfer into 30-egg tray
By adding extra tray production conveyor, it is possible to transfer into different type of 30-egg tray. This function contributes to the flexibility in your production planning.

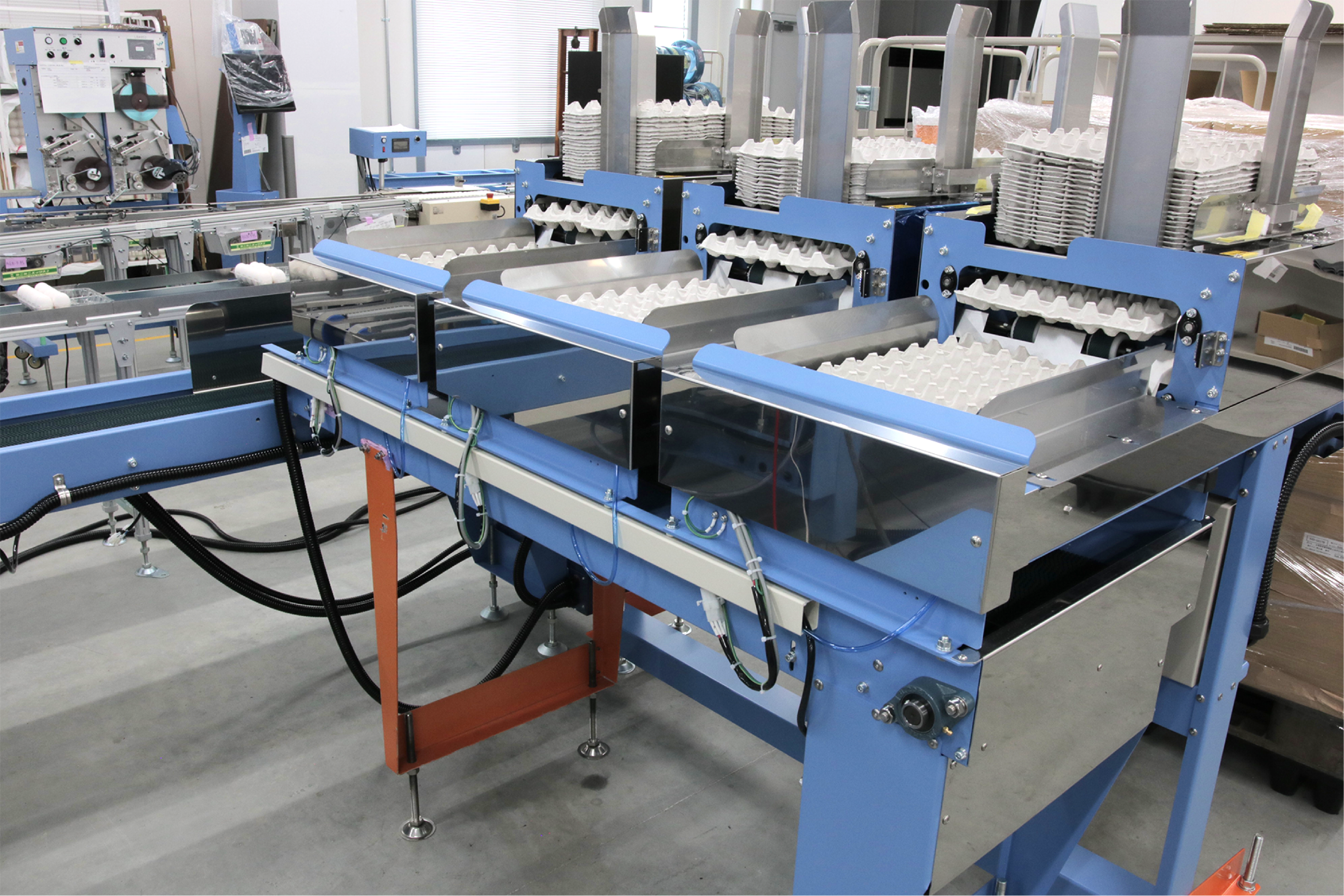

Versatile packing
The ROVO3600 can pack just the right quantity of eggs in any volume during each job. It can adapt to various carton or tray regardless of the shape.
Full automation of packing lanes
The SMART Cube series work well together for further automation of packing or palletizing boxes by robots. As an option Cube Link allows overall management of products on packing lanes, which leads to improve the efficiency.

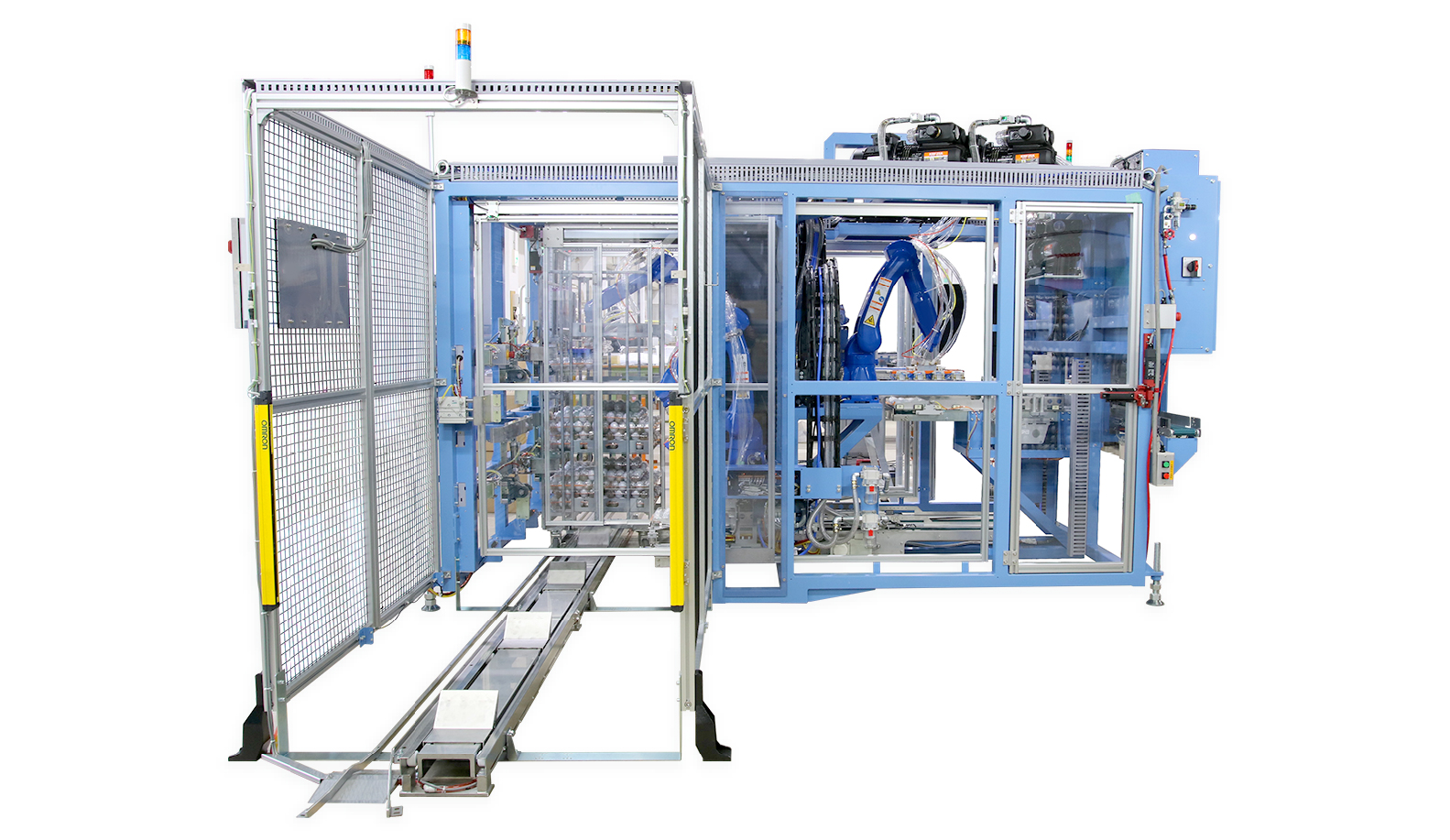

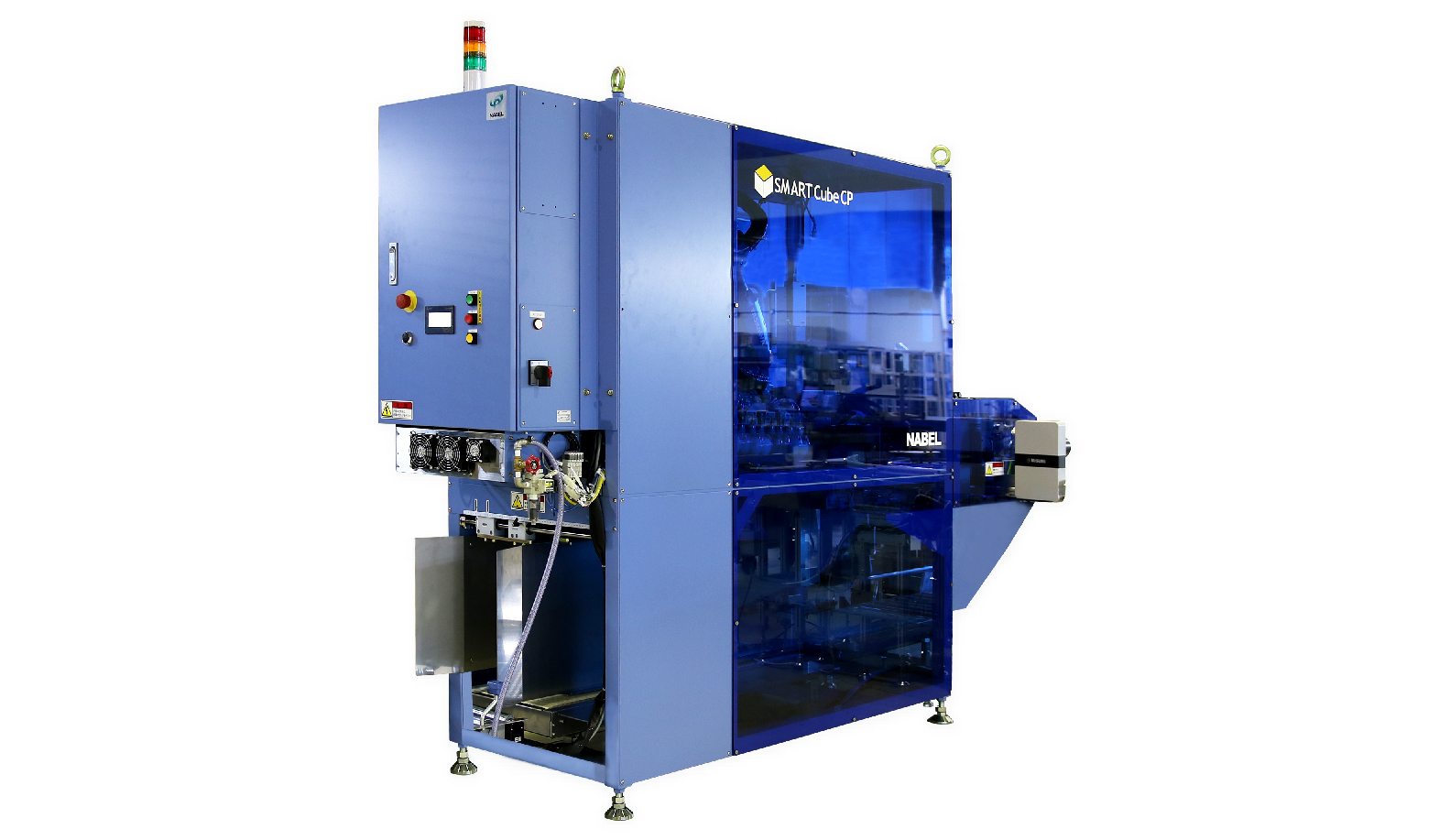

Case Packer (For packs)

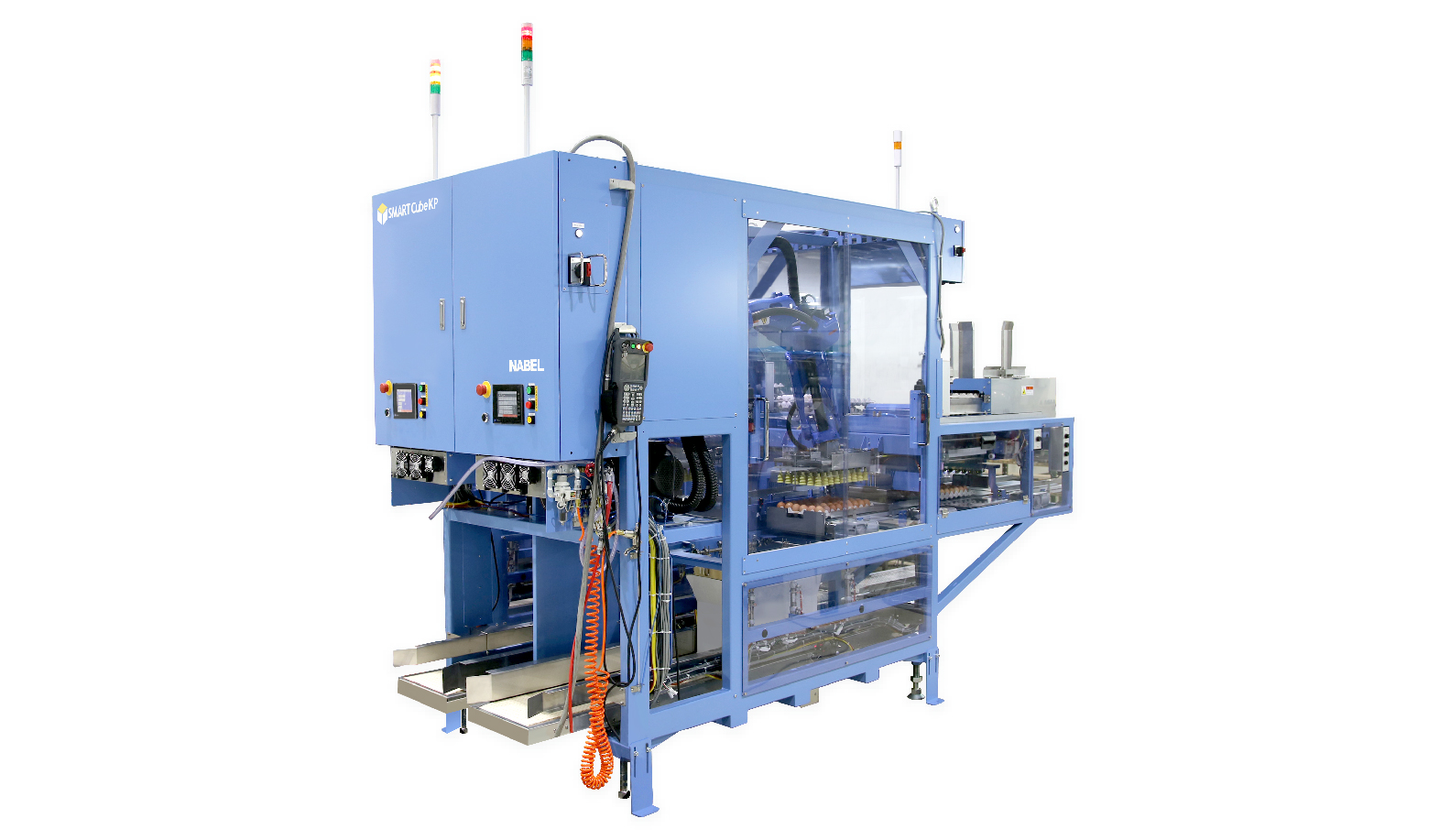

Case Packer (For pulp mold trays)

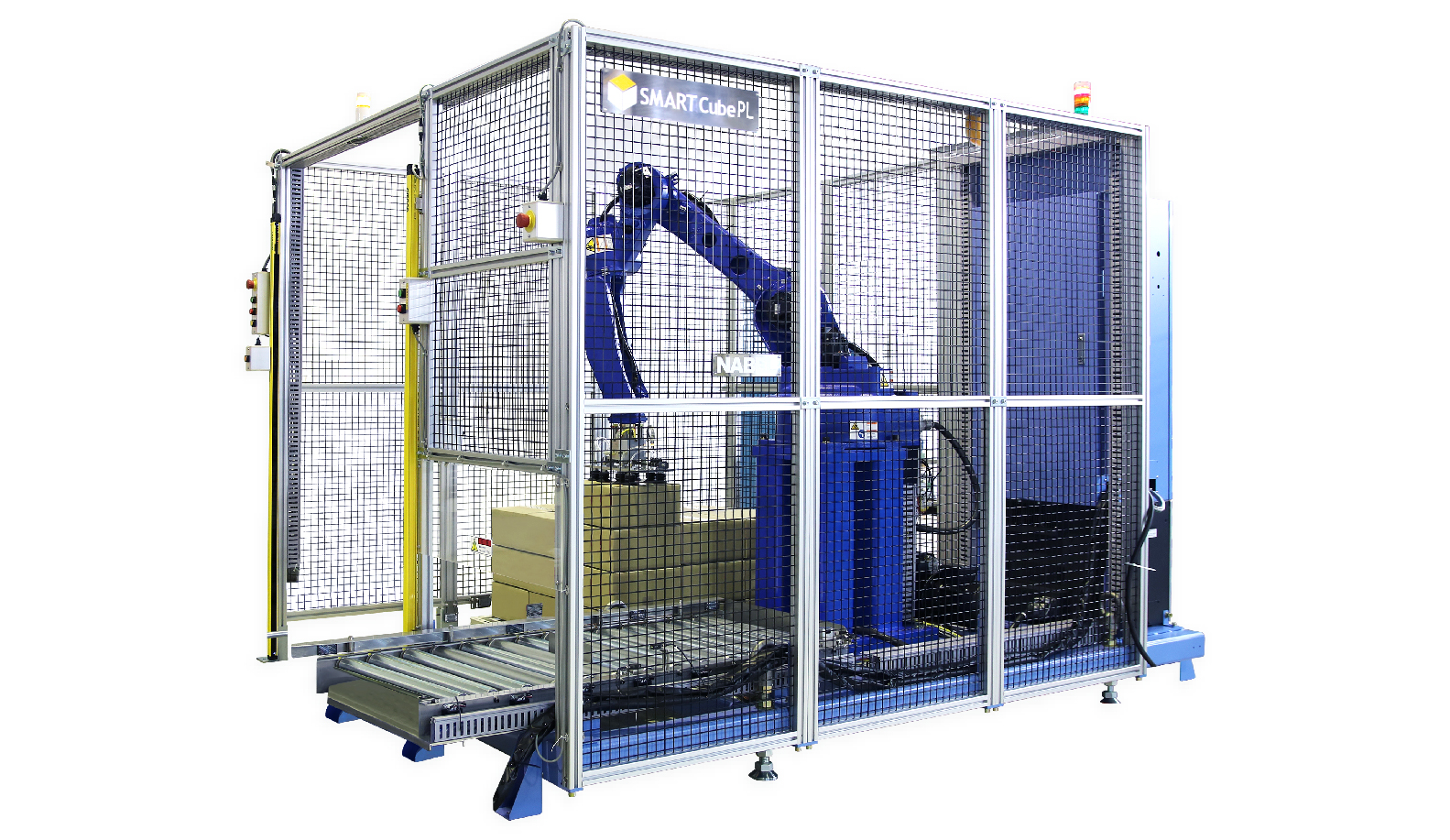

Case Palletizer
Pack Trolley Loader

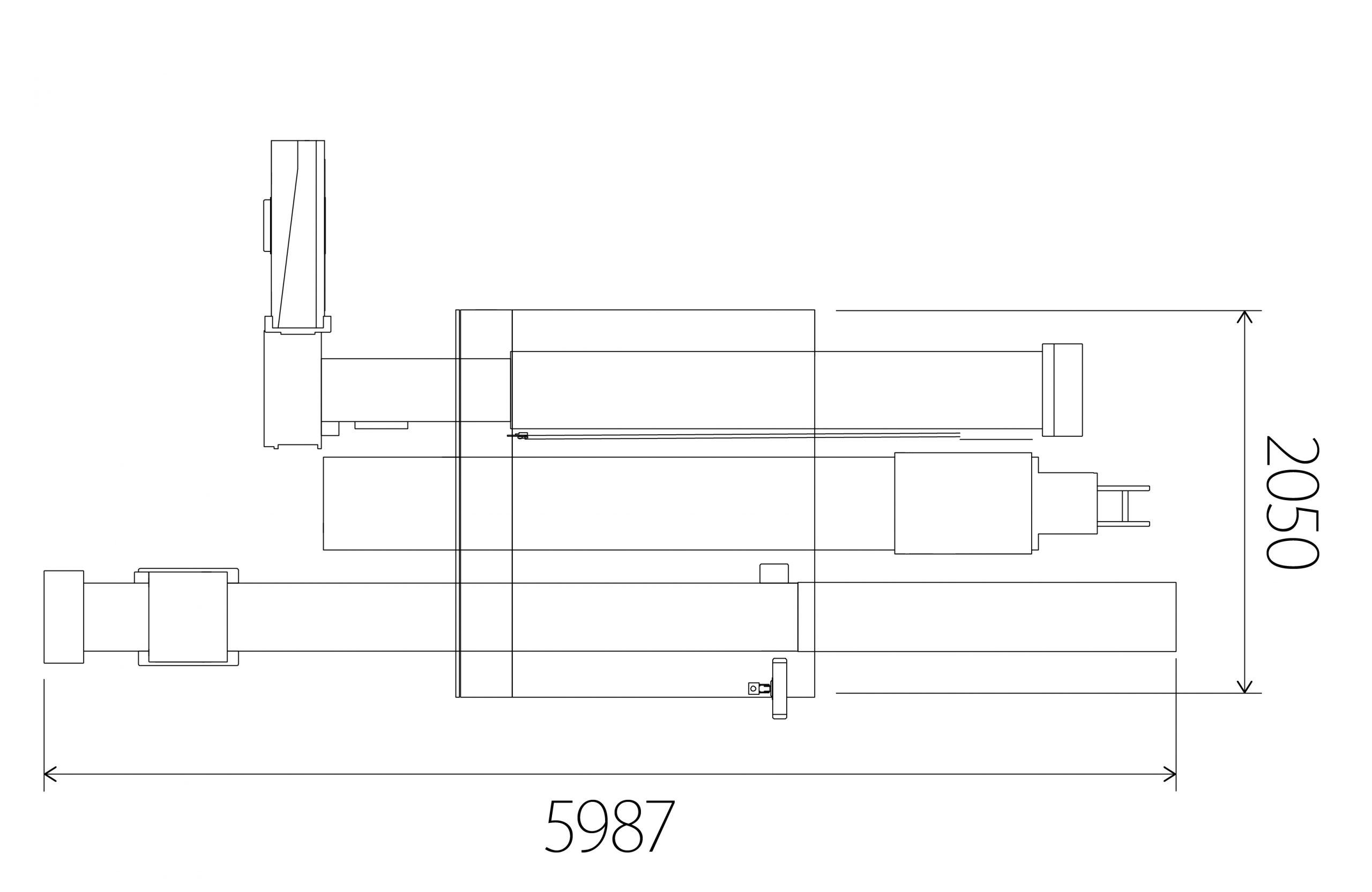

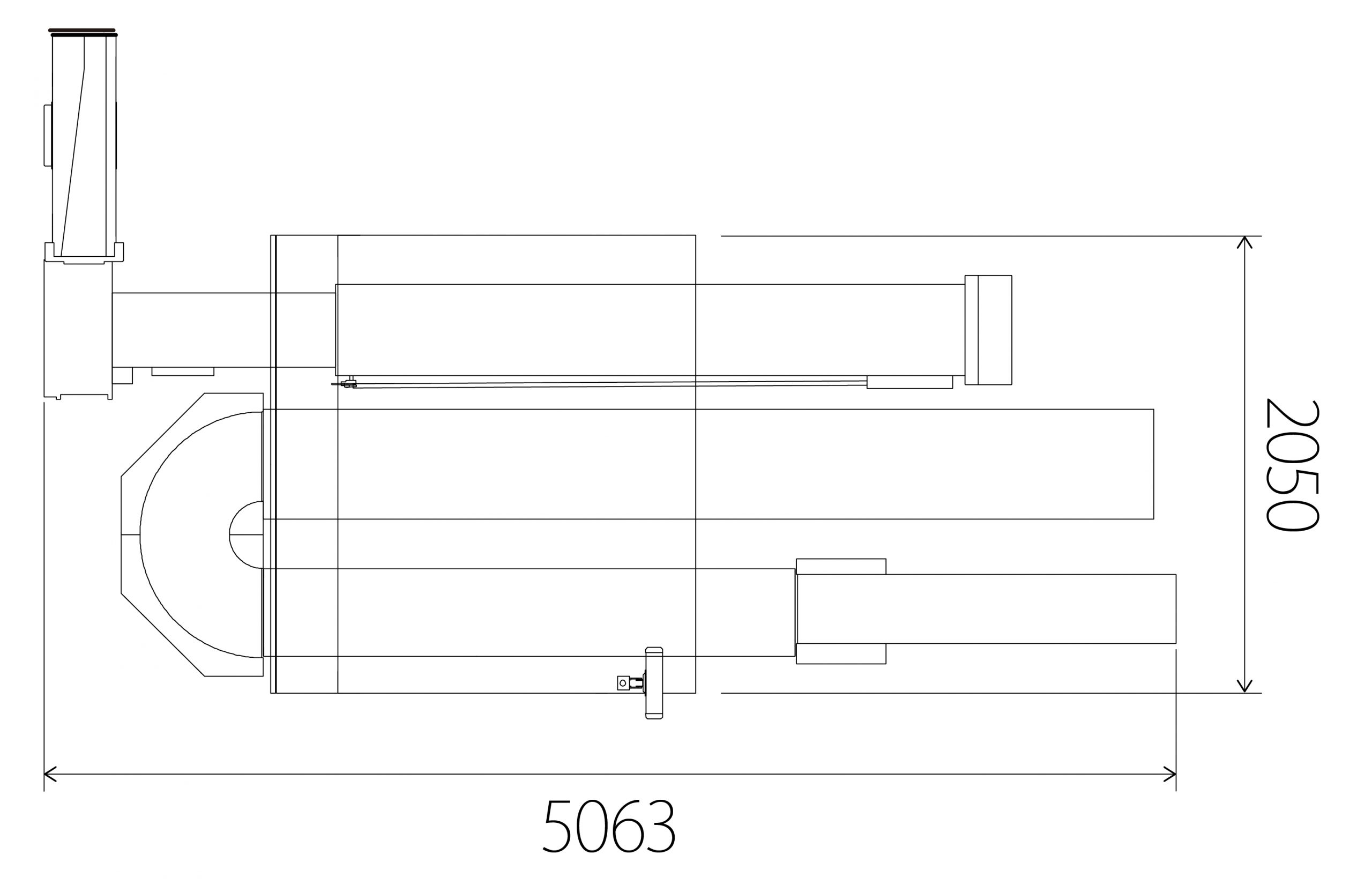

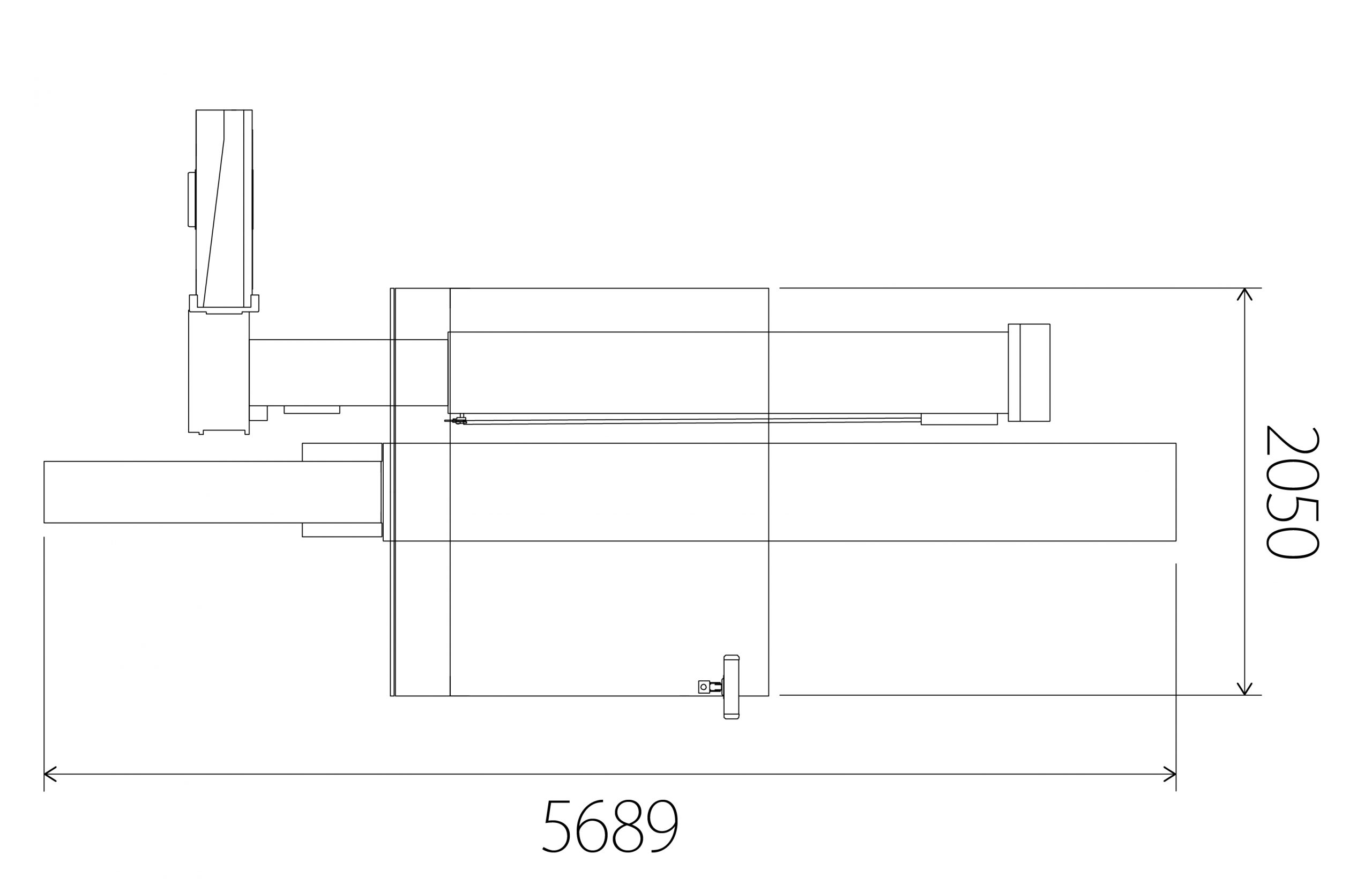

Layout
Straight type
U-turn type
Tray transfer type
Specifications
| Code | ROVO3600 | |
|---|---|---|
| Capacity (Max.) | 36,000 eggs/hr. | |
| Power | 50Hz : 3-phase 200V 41.5A 60Hz : 3-phase 200V 42.3A 1-phase 100V 30.0A |
|
| Air consumption | 50L/min. (ANR) | |
| Working environment |
Temperature : 0 – 40°C Humidity : 45 – 80% *1 |
|
| Available packs *2 | Plastic pack (10P, 8P, 6P, 4P) *3 Pulp mold carton (10P) *4 |
|
| Size regulations | Eggs : over 46g Package : for eggs over 52g |
|
| Target eggs | 2L, L, M, MS, S | |
*1 No condensation
*2 Compatible with 2L, L, M, and MS size plastic packs.
*3 8P, 4P, are optional.
*4 Pulp mold carton support is optional.
Designs and specifications are subject to change without notice.
