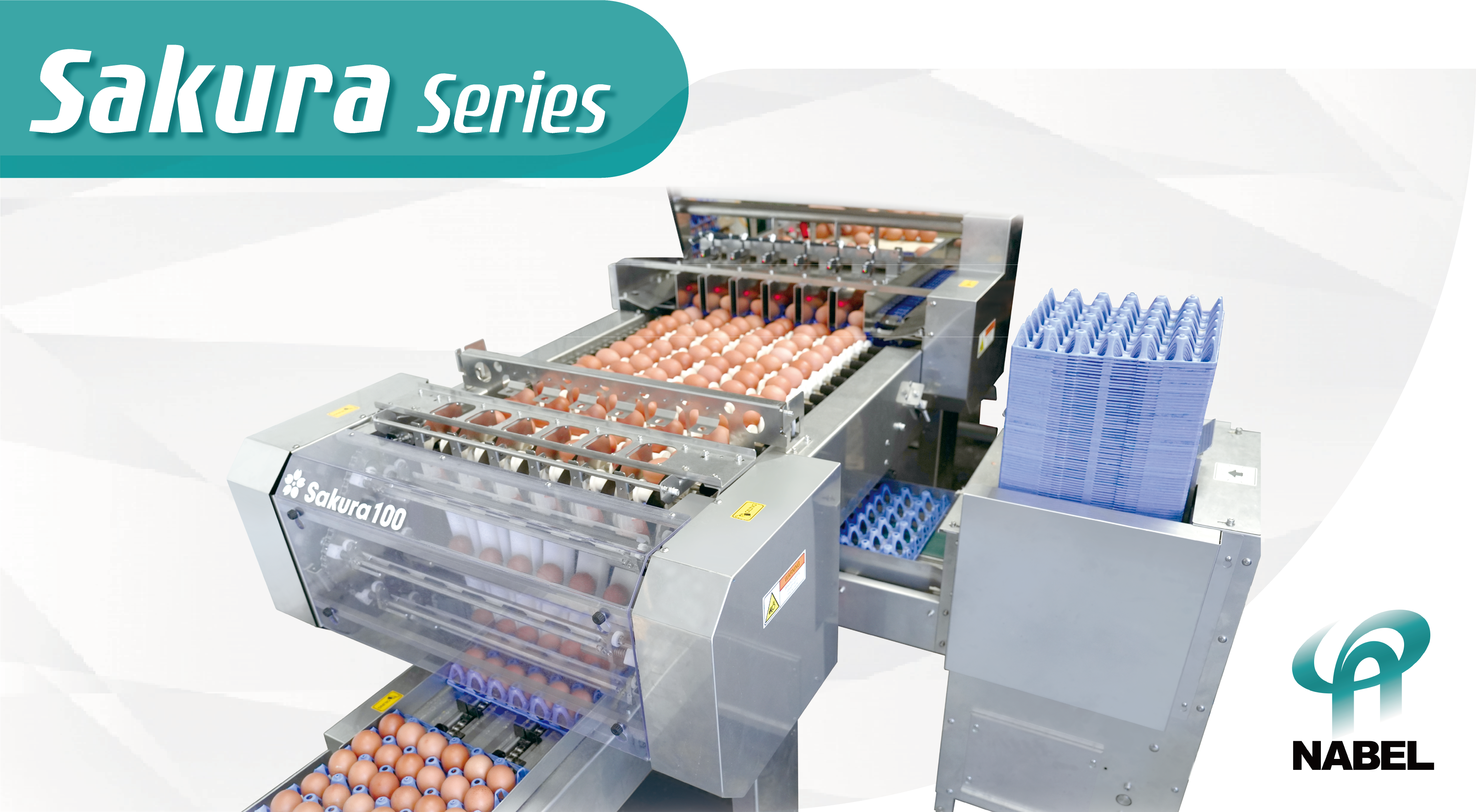

Sakura
Egg collection systeｍ
Compact Design changes the work at your farm
Sakura100 only needs a space of 2M square to install. It collects and packs eggs gently, while having a capacity of Max.100 cases (36,000 eggs) per hour. Despite its compact size, Sakura is designed to flexibly respond to customers’ needs at egg farms, which makes the egg collecting work more efficient.
Video
Features
Tray Compatibility
You won’t be bothered by the material of trays anymore, as both plastic and paper trays can be used in Sakura100. In addition, adjustable egg rails allow you to use various sized trays.

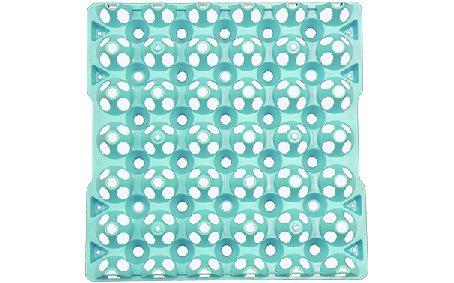

Standard 30-eggs tray

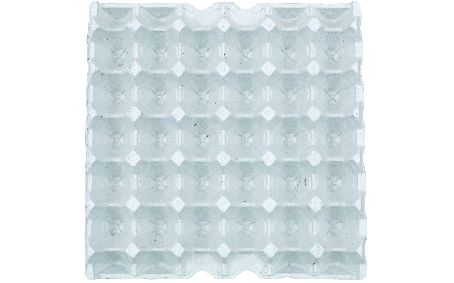

30-eggs pulp mold tray

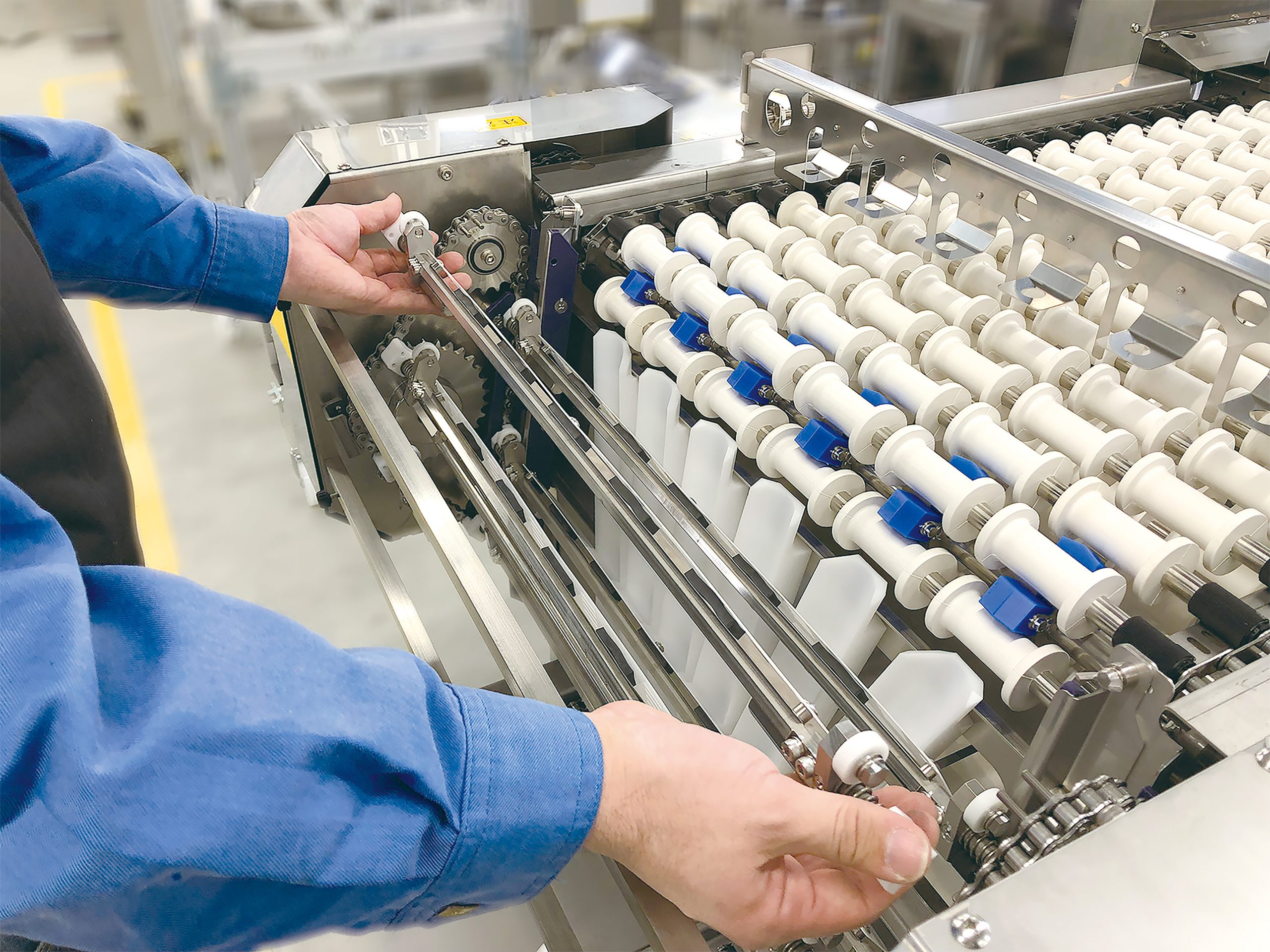

Openable Structure
When machine parts get dirty, you may take it out easily and wash it with water. Cleanness of the machine leads to continuous and long life operation without big troubles.
Product Line-ups
Sakura Series offers 3 kinds of capacity lineups: 100, 85, 70 cases per hour.You may upgrade your machine after installation if you need to increase the production capacity in the future.
Options
Tray Stacker ( ATS400 )
The Tray Stacker incorporates a bottom-support design to hold the trays from the bottom, which mitigates the impact on both eggs and trays. It also saves the workers from physically demanding tasks and leads to stable stacking.
Tray Feeder ( ATF001 )
The Tray Feeder feeds empty trays automatically to the tray denester on the farm packer. It stocks Max. 240 pieces of trays and let operators leave the tray feeding area for the longer period of time, which reduce the required labor.

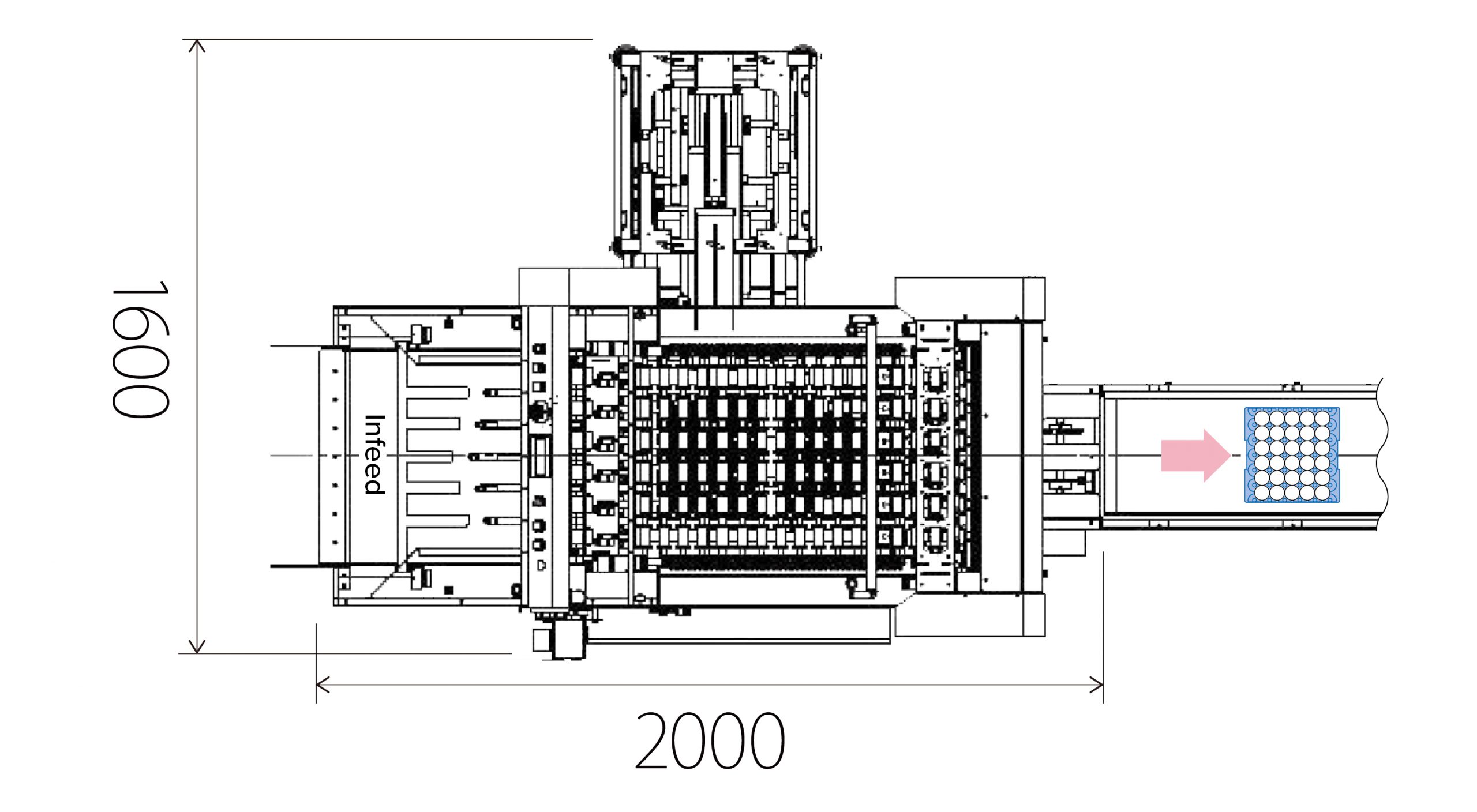

Layout
Specifications
| Code | Sakura100 | Sakura85 | Sakura70 |
|---|---|---|---|
| Capacity (Max.) | 36,000 eggs/hr. | 30,600 eggs/hr. | 25,200 eggs/hr. |
| Power | 1-phase 200V 8.1A / 7.8A | ||
| Working environment |
Temperature : 0 – 40℃ Humidity : 45 – 80% *1 |
||
*1 No dew condensation is allowed.
Designs and specifications are subject to change without notice.
