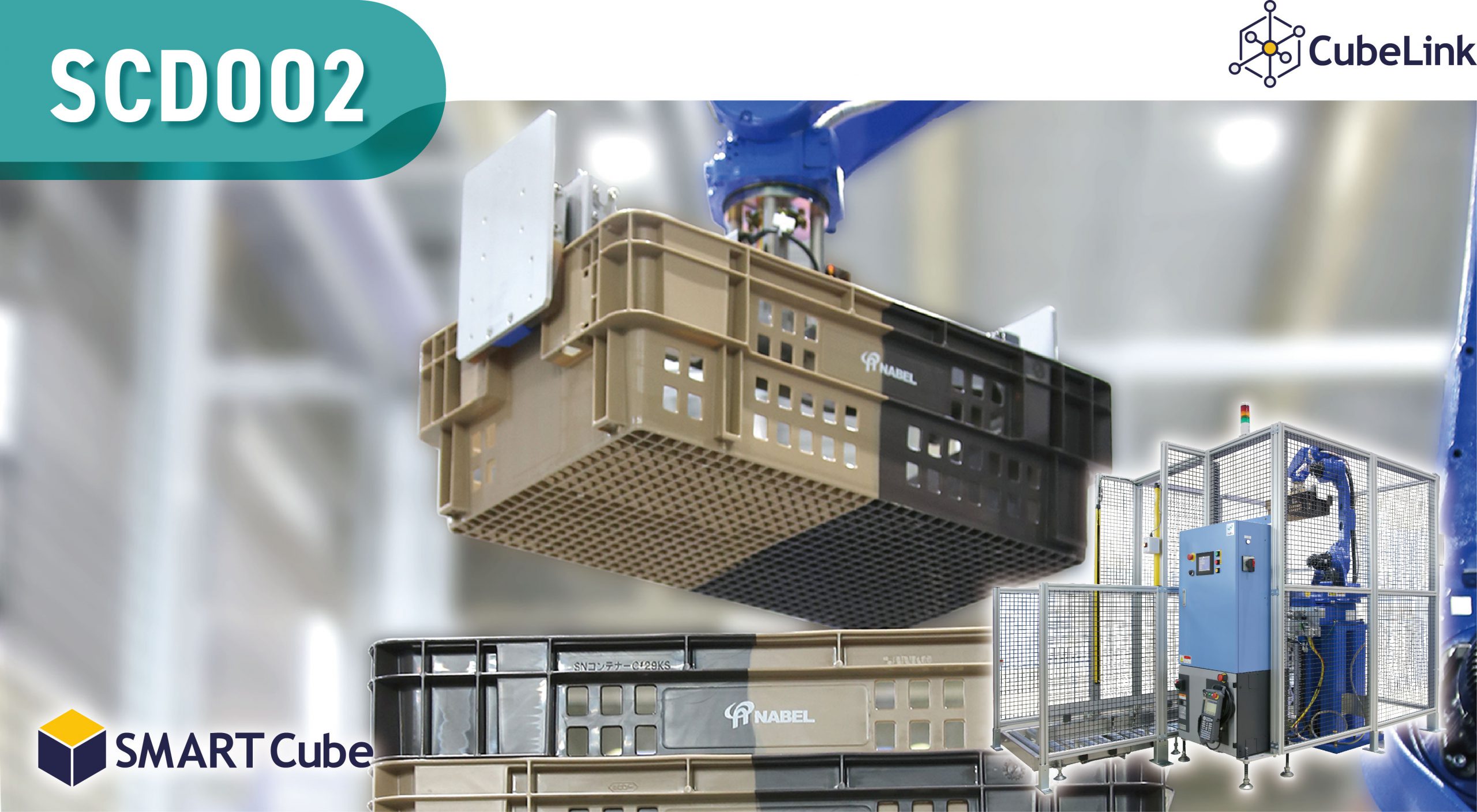

Case Destacker
SMART Cube
Automated case feeding
This robot automatically feeds stacked cases for transport to the line.
Features
SMART Cube Series
Robots automate operations such as container supply, boxing, box stacking, and pack trolley stacking. Automation of labor-intensive tasks reduces the workload on site. In addition, because the robot performs the work, it is not dependent on the skills of the operator or the speed of the work, and stable performance can be expected.

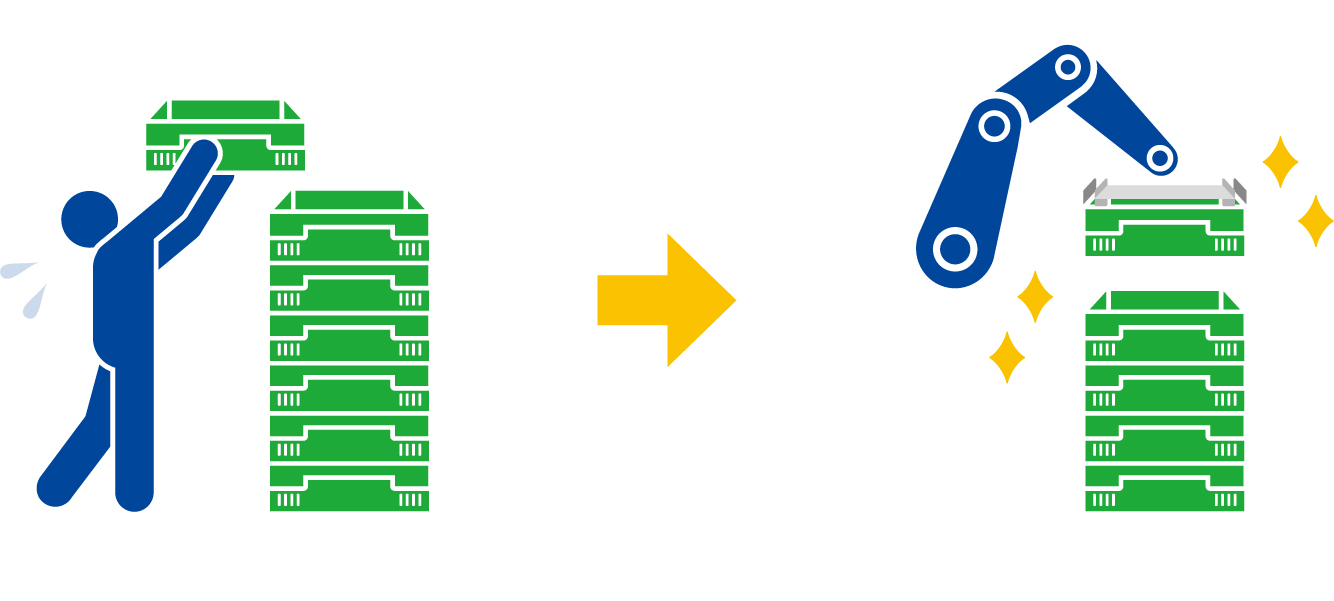

Reduced workload
The robot effortlessly handles case feeding tasks that originally require manpower. This reduces the burden on operators and ensures stable production on the packaging line.

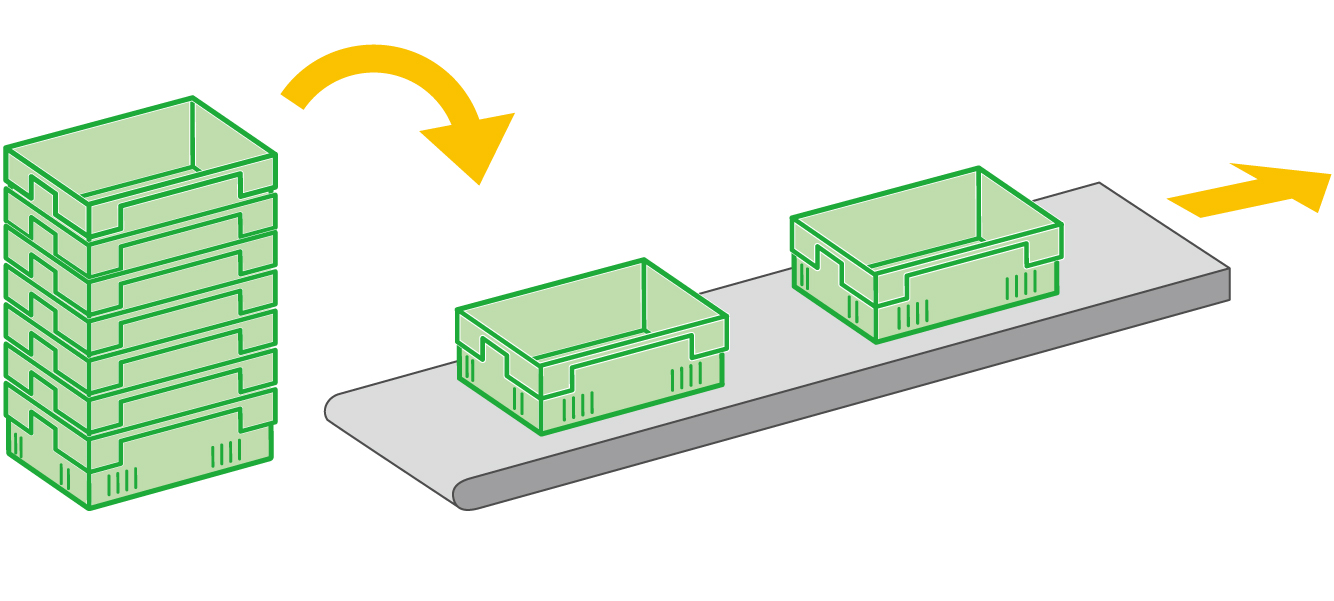

Automatic adjustment of case feed timing
The robot automatically destacks containers and transfers single containers onto the conveyor. It automatically adjusts feed timing to meet the requirements of the case packer and/or case palletizer.

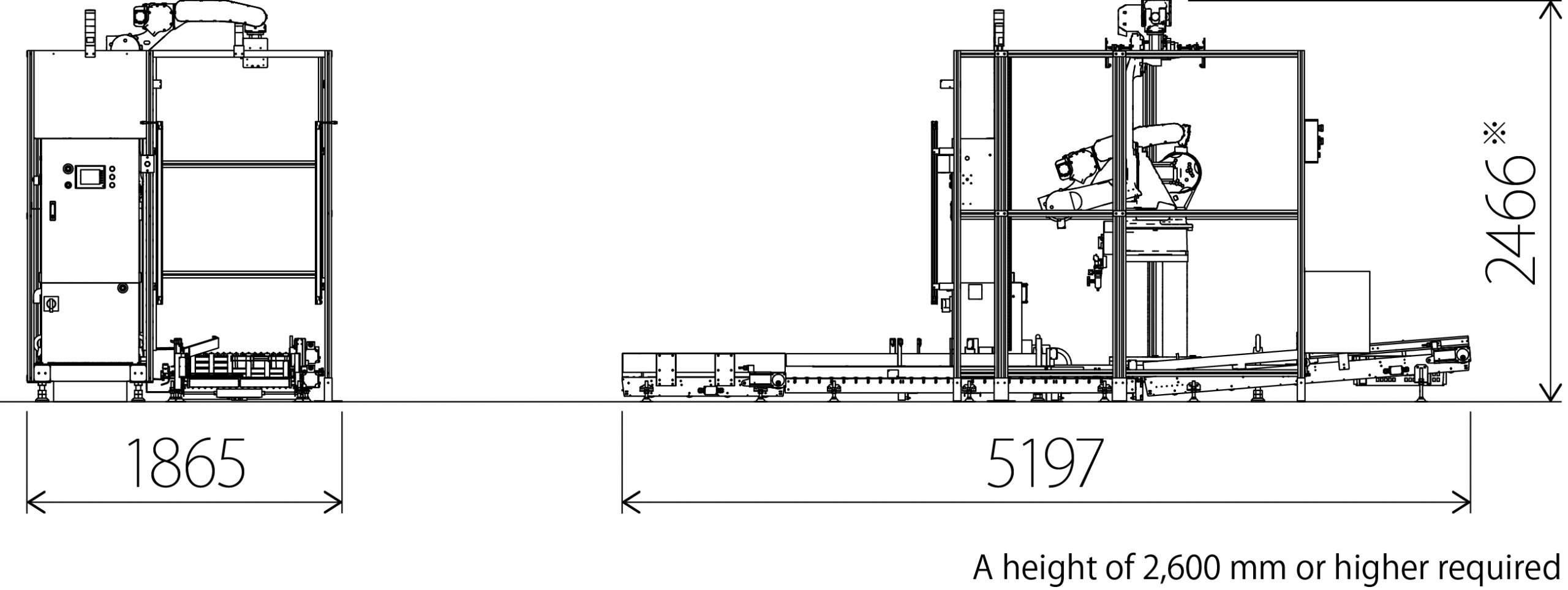

Layout
Specifications
| Code | SCD002 |
|---|---|
| Capacity (Max.) | 36,000 eggs/hr. *1, 2 |
| Power | 3-phase 200V 16.2A |
| Air consumption | 10L/min. (ANR) |
| Air supply pressure | 0.7MPa |
| Working environment |
Temperature : 0 – 40℃ Humidity : 45 – 80% *3 |
| Available cases *4 | Containers |
*1 When 6 packs of 10 packs are produced per case
*2 Depending on the stacking pattern, the capacity of this equipment may be less than that of the repacker.
*3 No condensation
*4 Only containers that have been tested by us can be used.
Designs and specifications are subject to change without notice.
*2 Depending on the stacking pattern, the capacity of this equipment may be less than that of the repacker.
*3 No condensation
*4 Only containers that have been tested by us can be used.
Designs and specifications are subject to change without notice.
